Endurance Test Chamber For Collaborative Robot Arms

A whole arm, not one joint

One joint can pass and the arm still fail.

What a cobot arm is

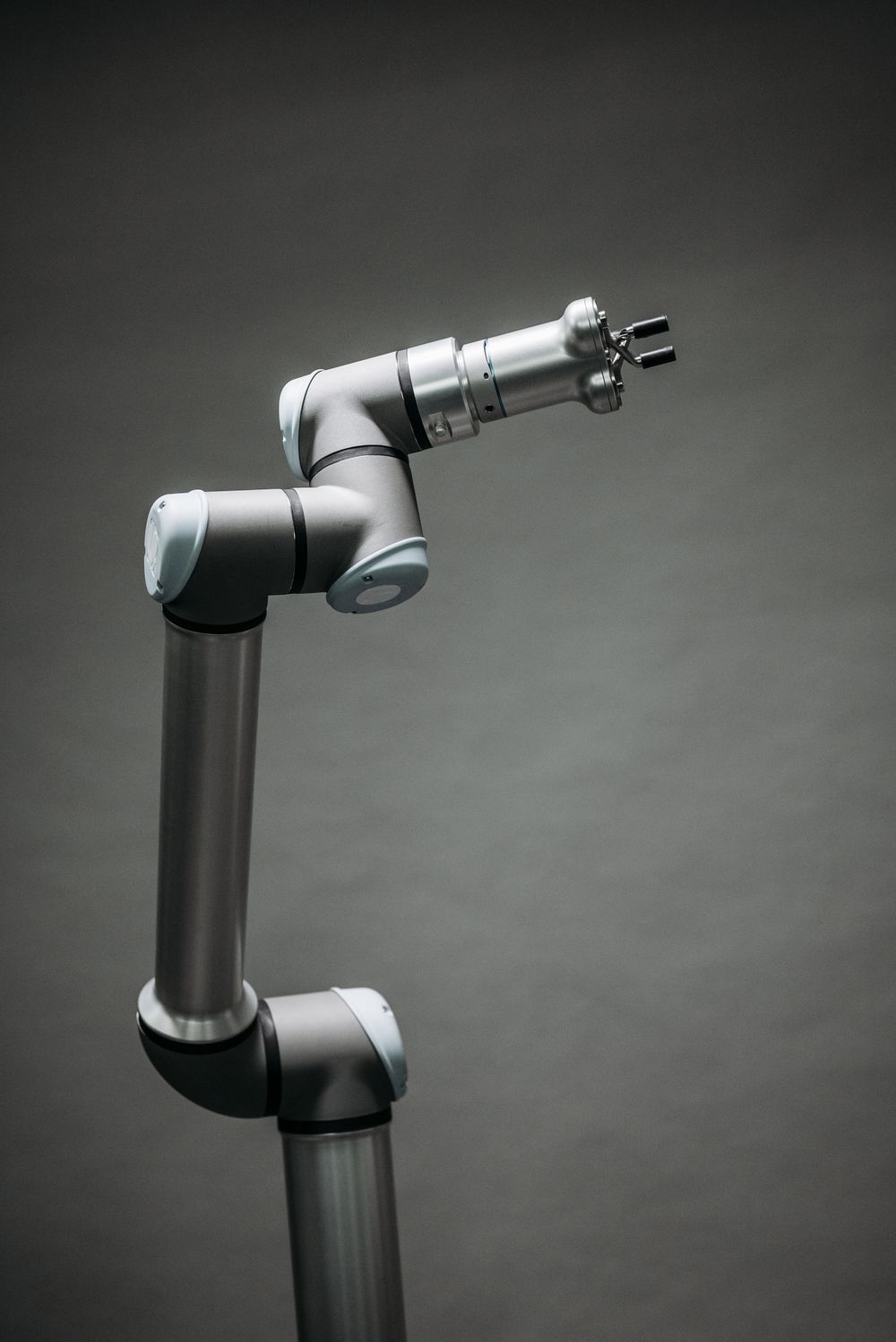

A collaborative arm is a chain of six or seven powered joints, each a motor and gearbox and encoder, stacked end to end so the tool at the tip can reach any pose within its span. Running through that chain is a dresspack, the bundle of power and signal and air lines that feeds the tool, and woven through the whole machine is the force and torque sensing that makes it collaborative, the thing that lets it feel a hand in its path and stop.

A controller coordinates the joints into a smooth move, and the endurance test asks whether that whole assembly, joints and cables and sensing together, still works after the years of motion a factory will put it through.

Why the whole arm ages unlike its parts

The hardest thing about ageing a cobot arm is that its failures are cumulative in a way no single joint shows on its own. Repeatability, the arm's ability to return to the same point again and again, is the number a buyer cares about, and it is the sum of every joint along the chain: a tiny growth of backlash in the shoulder, a hair of wear in the elbow gear, a touch of lost preload in the wrist, none of them alarming alone, all of them adding up at the far end of a long lever into a tool that no longer lands where the program says. A joint tested by itself can pass its own spec while the stacked drift of six of them pushes the tip out of tolerance, so the arm has to be aged as a whole and measured at the tool, not joint by joint. The cabling ages on its own clock. The dresspack that carries power and signal to the tool is bent and twisted on every cycle until, over millions of flexes, a conductor cracks or a hose chafes through and the arm picks up a fault that comes and goes with one pose. Then there is the thing that makes the machine collaborative at all, the force and torque sensing, which has to stay honest for the arm to stay safe: heat shifts its zero, load and age creep into its calibration, and a sensor that reads low will let the arm push harder than it should before it senses a person and stops. The chamber has to bring all of this out together by running the whole arm through a real working cycle at full speed and load for the millions of repetitions a working life contains, while heat and damp and dust press on it from outside, and by measuring the things that fade, the repeatability at the tool, the cycle time, the current each joint draws, and the accuracy of the force sense, because in a cobot the precision and the safety decline on the same curve and a soft test misses both.

Repeatability is the number that fades

Its accuracy slips away over years of small wear.

A real duty cycle, run a million times

The test does not nudge the arm and stop. It loads the tool to a real weight and drives the arm through a true working cycle, a pattern of reaches, holds, and returns at production speed, then runs that cycle for the millions of repetitions a few years on a line would bring.

Speed and load are the point, since an arm worked gently ages nothing like one moving fast under a full payload, and the chamber runs the cycle without pause while it holds the climate, so the wear that accrues is the wear of a real working life rather than a polite sample of it.

The dresspack that flexes to death

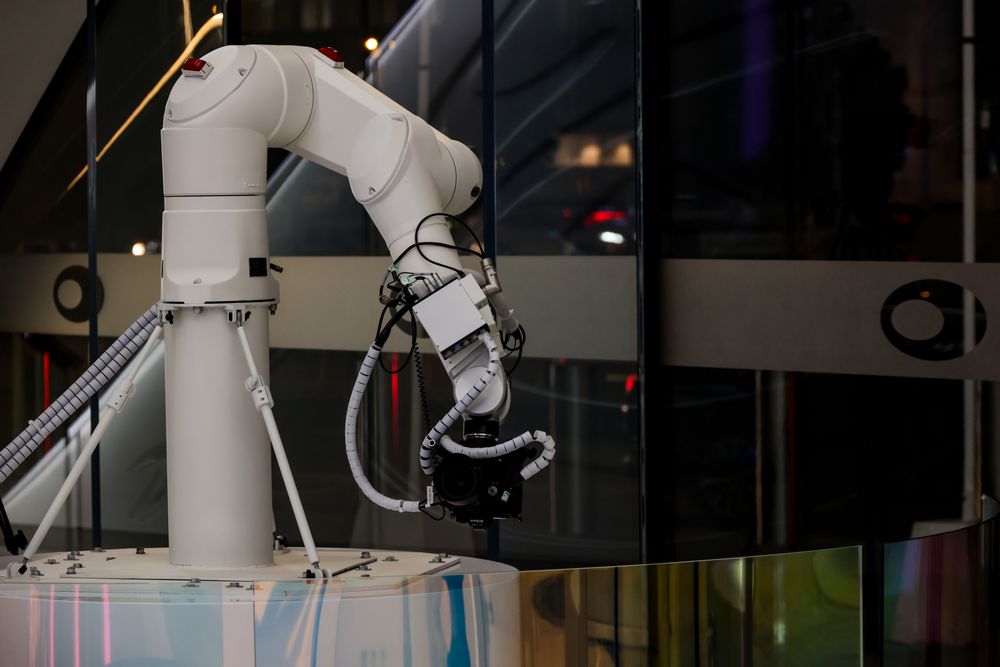

Running along the outside of the arm is the dresspack, the loom of power, signal, and air lines that feeds the tool, and it lives a harder life than the joints. Every cycle bends and twists it, and over a few million flexes a copper conductor work-hardens and cracks, an air hose chafes against a clamp, a shield frays and lets noise into a signal.

The fault it leaves is the worst kind to chase, intermittent, showing only at one pose or one speed, gone when the arm is still. The test flexes the dresspack exactly as the work would and watches for the signal that flickers, because a loom that fails at two years is a line stopped for a fault no quick check would have found.

The force sense that keeps it safe

What makes the arm collaborative is that it feels what it touches and stops, and that sense rests on force and torque measurement that has to stay honest for the safety to hold.

Heat shifts the sensor's zero, load and age creep into its calibration, and a sensor that reads a little low lets the arm push a little harder than it believes before it senses a person and halts, so the endurance run does not only ask whether the arm still moves; it checks, through the heat and the hours, whether the arm still feels correctly, since a cobot that has gone deaf to force is not a breakdown but a hazard.

Deaf to force is worse than dead

Lose the force sense and the safety goes with it.

Heat, damp, and the factory floor

A cobot does not live in a lab; it lives on a plant floor that is warm from the machines around it, damp in a wash-down bay, and thick with oil mist and dust. The chamber brings that floor to the arm, holding a raised temperature and humidity around it for the length of the run, since heat thins the grease and ages the electronics faster, and damp creeps past seals into bearings and connectors.

An arm proven only in a cool, dry room can fade in months once it meets the real air it has to work in, so the test holds the room the arm will truly live in around it while it runs.

Reading the arm as it wears

The value of the run is in what it measures as the arm ages. The repeatability is checked at the tool against a fixed reference, the path the arm traces is compared to the one it traced when new, the current each joint draws is logged for the climb that marks a stiffening gear or a dragging bearing, and the force sense is calibrated against a known load to catch its drift.

The brakes that hold a pose against gravity are tested for the grip they keep. An arm that holds its numbers earns its years; one whose repeatability has loosened, whose force reads wrong, or whose dresspack flickers is sent back before it reaches a customer's line.

What a soft run hides

An arm passed on a test that ran slow, light, cool, or dry does not fail on the bench. It fails on a customer's line a year in, missing its mark, dropping a part, or worst of all pushing past a force limit it no longer measures, and by then it is a recall rather than a rework.

Where it sits among the tests

This endurance run is one of several a cobot faces, beside the safety certification that proves its force limits on a fresh arm, the cold-start and ingress checks, and the raw life test that counts the cycles a single joint survives. Each looks at a different thing, and the warm, damp, loaded endurance run owns the slow question of whether a whole arm keeps its precision and its safety together over the years and the cycles of real work. A cobot bound for a factory runs the set, and this chamber carries the part that copies the long life on the floor.

Mastering, the zero the arm forgets

A cobot is mastered when it is installed, taught where each joint sits so it can turn a programmed pose into real angles. That zero is only as good as the mechanics behind it, and as bearings settle and gears wear over the years the true position drifts away from the remembered one, so the arm grows accurate to itself yet wrong against the world, repeating a move perfectly to a spot that is no longer quite the right spot.

The endurance run watches that creep, since it tells a buyer how often a working arm will need re-mastering to keep landing where it should.

Why no fence raises the stakes

A caged industrial robot that wears out simply stops a line, and a fence keeps people clear of it while it does. A cobot has no fence; that is the whole point of it, and it is also why its endurance matters more. The same drift that would be a maintenance note on a caged arm becomes a safety question on a cobot, since the worn part that lets it push too hard is standing next to a person when it fails.

The test carries that higher bar, asking the fenceless arm to keep both its aim and its restraint for the whole of its life.

The arm that has to keep its word

A buyer trusts a cobot to land where it should and to halt the instant it meets a person, and to keep both promises for years of work beside people. A chamber for this holds the warm, damp, dusty air of a real floor around a whole arm, drives it through a true working cycle for the millions of reaches a life contains, and reads the slow fade in the precision and the sense of touch the buyer is paying for.

Get it right and the arm that comes through clean is one that will still land true and still feel a hand a decade on; get it wrong and the drift waits to surface as a missed part, or a person hurt, on a line that trusted the spec.
