Temperature Cycling Chamber For Microelectronics Per MIL-STD-883 Method 1010

Cycling, not shock

Method 1010 swings a part slowly through temperature; it does not shock it.

What Method 1010 covers

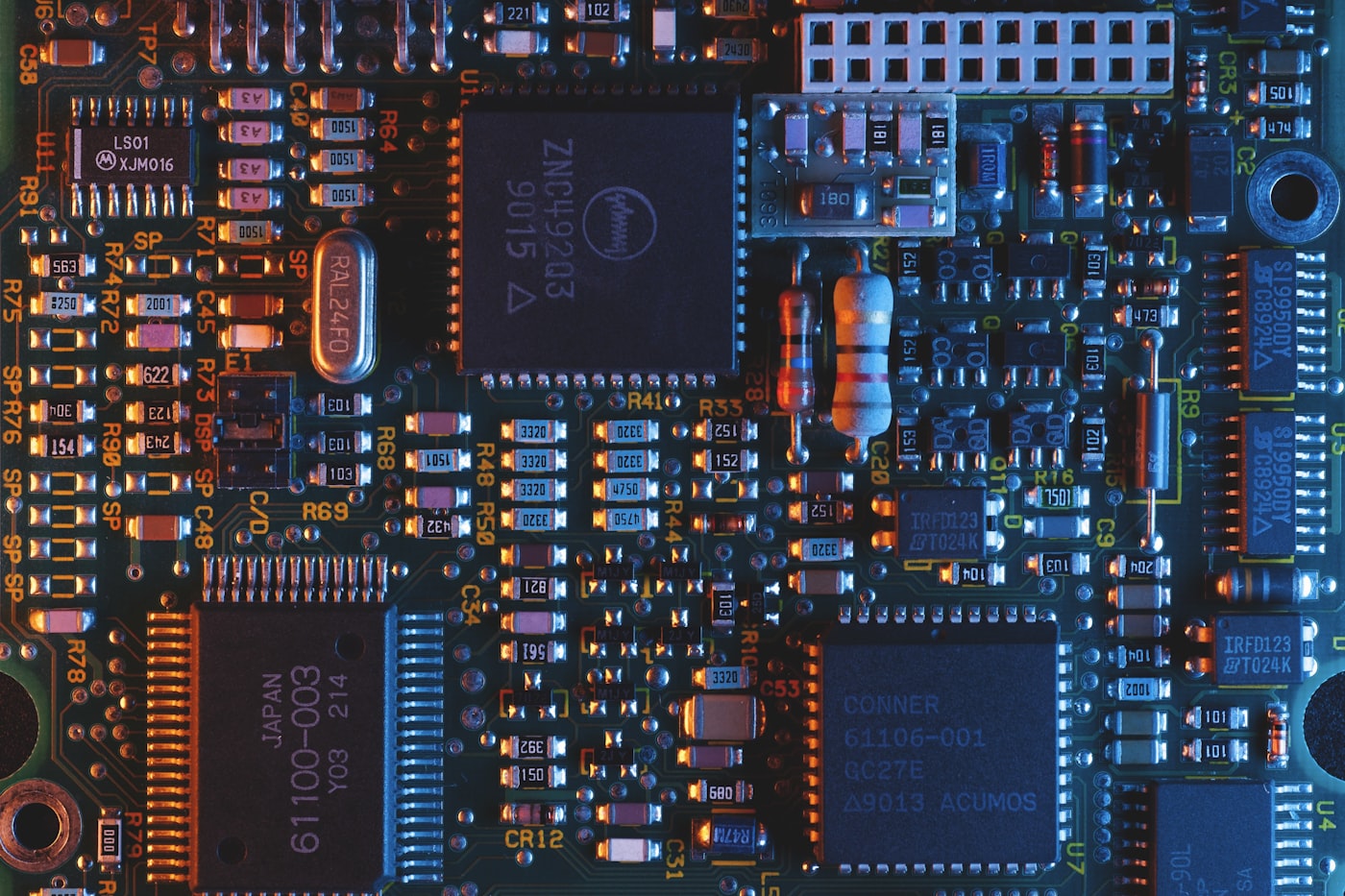

MIL-STD-883 is the test book for microelectronics, the bare die and packaged devices a system is built from rather than around, and Method 1010 is its temperature-cycling test. It asks whether a chip's package can take the repeated swelling and shrinking of temperature change without its internal bonds working loose.

The thing under test is not a board or a finished product but the chip itself, the die on its carrier inside its shell, and the method judges whether that small layered construction holds together across a lifetime of warming and cooling.

The slow swing that makes it cycling

The name of the test carries the whole of its meaning: Method 1010 cycles a part through temperature rather than shocking it, and the gap between those two words is the gap between this method and the abrupt liquid trials that share its rulebook. In a cycle the air of the chamber is walked from a low extreme up to a high one and back at a pace the part can keep up with, the small device riding the gas temperature up and down rather than being plunged across a wall of it, and the dwell at each end is held long enough that the die, the leads, the encapsulant, and the case all reach the extreme and settle there together. That gentleness is the point of the method, not a concession in it. A microelectronic part is a stack of unlike materials bonded into one body, silicon sitting on a metal or ceramic carrier, gold or aluminum wires arched from the die to bonded pads, a moulded or sealed shell closed around the whole, and each of those materials grows and shrinks at its own rate as the temperature moves. A single swing strains the bonds between them a little; the test asks for that strain to be repeated, scores or hundreds of times, because the failure it hunts is fatigue, the slow opening of a die-attach layer or the slow flexing-to-fracture of a wire that no one pass would ever bring to light. Where an abrupt shock looks for the part that cannot survive a single violent mismatch, cycling looks for the part whose construction loosens under the patient repetition of a milder one, and the two find different weaknesses in the same small body. So the chamber's task here is not speed but cadence: to carry a full load of parts smoothly to each extreme, hold them until every one has arrived, return them just as smoothly, and repeat that journey faithfully for the count the condition names, so that the fatigue the test reports is the fatigue the part would gather across a life of warming and cooling, pressed into a tray and a span of days.

The damage is fatigue, repeated

The harm is fatigue: the same expansion gap opened and closed until a bond quietly gives.

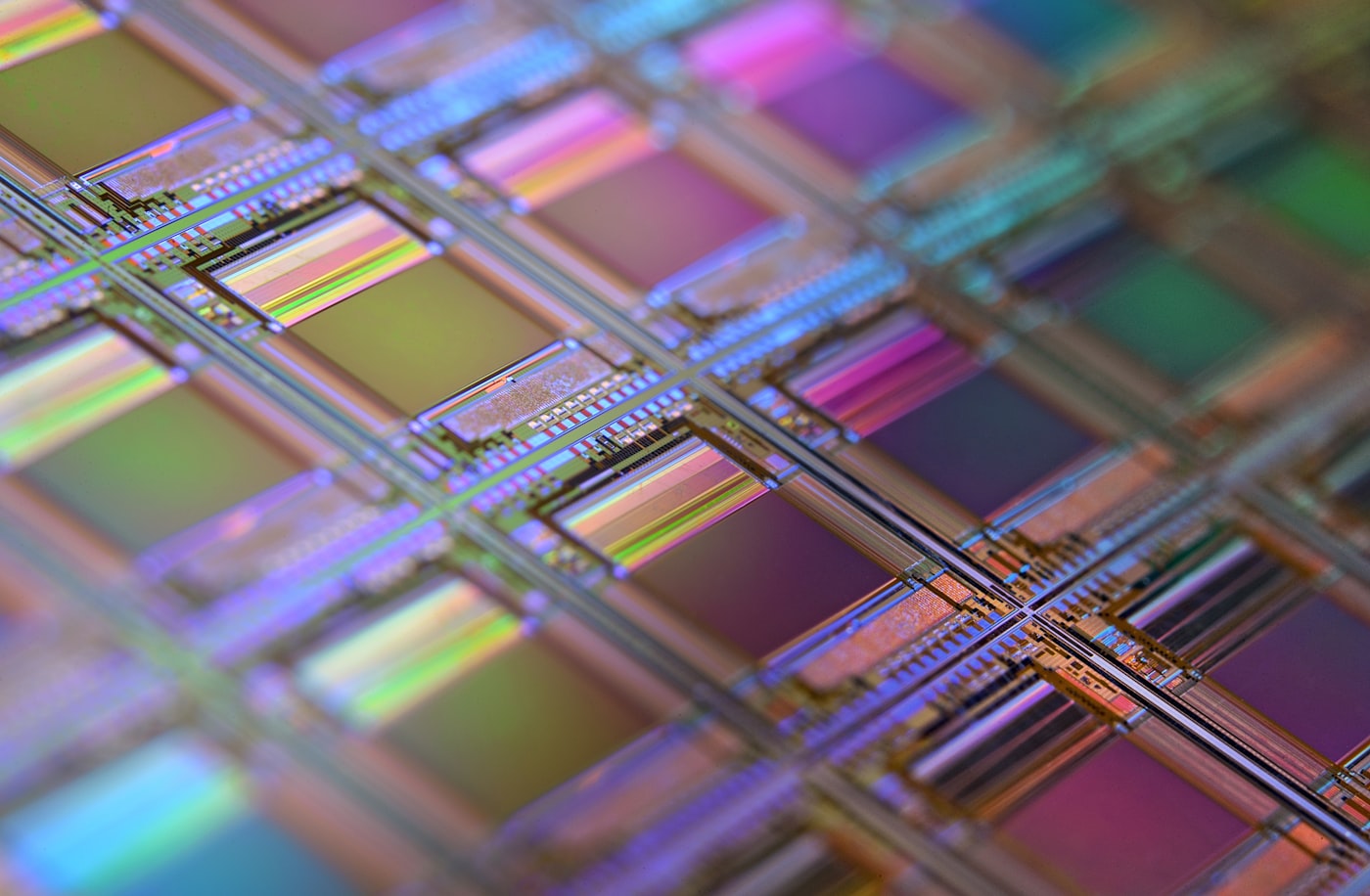

Where the package gives way

The first place to loosen is often the die-attach, the layer that bonds the chip to its carrier. Silicon and the carrier beneath it pull apart at different rates with every swing, and the bond between them works like a hinge flexed too many times, opening into a void that starves the die of its path for heat.

The wire bonds are the next to suffer. Each fine wire arched from the die to its pad is anchored at two points that drift apart and back with temperature, and the arch flexes a fraction at the heel of each bond on every cycle, until a wire that bent ten thousand times cracks where the bending has worn it through.

The shell itself can fail. A moulded compound grips the die and the frame with its own expansion, and the mismatch can crack the body, lift the passivation that glazes the die, or peel the compound away from the metal it was meant to hold.

In a sealed part the seam is at risk. A hermetic package keeps moisture from the die behind a glass or metal seal, and the repeated strain can open a path so fine that no eye finds it, letting in the damp that later does the real harm.

Air, not liquid

The medium here is gas in motion, not liquid.

Inside a 1010 condition

A 1010 test runs to a lettered condition that fixes the cold extreme, the hot extreme, the dwell at each end, and the number of cycles; that a letter lets two buyers compare like with like is a story the component standard tells in full, and the chamber honours whichever letter the part is held to.

The conditions climb in reach as the letters advance, a gentle pairing of a moderate cold with a moderate heat at one end of the list, and a punishing span toward a deep cold and a high heat at the other, the harder grades reserved for the die and packages meant to live in an engine bay, a satellite, or the open cold.

What the letter names is read straight onto the chamber. The operator selects the condition rather than dialling figures that might drift from the standard, and the machine then owns the cold, the heat, the dwell, and the count as a single fixed recipe it must not bend.

Dwell long enough to settle

The dwell at each extreme is generous because cycling, unlike shock, waits for the part to arrive. A small die reaches the air temperature quickly, but the carrier, the leads, and the moulded body behind it lag, and the hold at each end is sized so the whole package, not just its surface, comes to rest at the extreme before the swing reverses.

Only then does the strain the test wants appear in full. A part pulled back before its core had settled would see a smaller swing than the condition names, and the fatigue it gathered would understate the trial, so the dwell is the price the method pays for a true and repeatable stress.

How many cycles

The count is the lever the method turns for severity. A screen run on every part to weed out early weakness asks for a modest number of cycles, enough to surface a gross flaw without spending the part's life; a qualification meant to prove a design will run far longer, into the hundreds, to draw out the slow fatigue that only repetition reveals.

The figure is named by the condition and the flow that calls it, and a chamber that ran fewer would grant a qualification the part had not earned, so the count is honoured to the cycle.

Screen and qualification both

Method 1010 wears two hats in the microelectronics flow. As a screen it is run on the whole population, a stress applied to every part to drive out the units born with a weak bond before they ship, and it sits in the same family of screens as burn-in.

As a qualification it is run on a sample, a stress carried far past the screen's count to prove that the design and its construction can survive a service life, the result read as a verdict on every part the design will yield. A lot that passes its sample is accepted on the strength of the few that were cycled, the economy that lets a maker qualify a run without spending it.

Where 1010 sits among the standards

It helps to place the method in its family. The 883 standard governs microelectronics, the die and packages and hybrids, and within it Method 1010 is the gentle gas cycling while its sibling Method 1011 is the abrupt liquid shock, the two dividing the work of temperature between patient fatigue and sudden mismatch.

Above the chip sit other rulebooks for other scales, the standard that qualifies a discrete component and the one that proves a finished system, each owning a rung the chip standard does not; 1010 owns the level where the packaged die is judged before any board is built from it.

One tray, one cadence

Parts are cycled by the trayful, hundreds of them riding the same slow swing together to qualify a whole lot.

What the chamber must hold

For the chamber, cycling sets a different discipline than shock. It is not asked to hurl a part across a temperature wall but to carry it there along a controlled slope, and the gentleness of that ramp is itself part of the test it must reproduce.

It holds the lettered condition as a fixed recipe, the exact cold and the exact heat the letter names, so an operator chooses a grade rather than entering numbers that could wander a careless degree from the standard.

It times the dwell at each end so the whole load, not just the fastest part, has reached the extreme, and it keeps that timing the same at every station of the tray so no corner of the load is cycled less hard than another.

It counts the cycles the condition fixes, no fewer and no more, since a run that lost its place would void the qualification or the screen it was meant to deliver.

And it carries a full tray of small parts through all of this with the same swing in every position, run after run without drift, because the fatigue the method reads is trusted only if every part met the same journey the same number of times.

Cycling against shock, in a line

Shock asks once and loudly; cycling asks softly, again and again.

Pass means the package endured

Passing Method 1010 is a statement about a chip's construction. The cycling pulls on every internal bond a temperature swing can strain, the die-attach, the wires, the seal, the moulded body, and a part that comes through has shown those junctions hold under repetition.

It proves the layered package was built to live with the warming and cooling of its service, the assurance a designer leans on when a chip is dropped into a board that will heat with use and cool overnight for years.

The cycle is the proof

Method 1010 turns the patience of temperature into a measure of a package's life. The condition fixes the swing, the dwell, and the count; the chamber holds them faithfully; and the part that survives the repetition has shown the bonds inside it will not fatigue loose in the field.

A chip proven across the cycles is a chip a designer can build upon without fearing the slow work of heat.
