Softened Water Versus Reverse Osmosis Water For Chamber Humidifier

Two treatments, two different results. One swaps the hardness for sodium. The other strips the dissolved solids out. Only one of them fits any given humidifier.

Softened water starts as the same hard supply that reverse osmosis water does, then the two part ways completely. A softener trades the hardness minerals for sodium, so the total dissolved load stays close to where it began. Reverse osmosis presses the water through a membrane that holds most of the dissolved solids back, so the water that passes carries a small fraction of what arrived. The two treatments take out different things. They suit different humidifiers for that reason. The choice for a chamber turns on one question, whether the humidifier needs the water to conduct or needs the water to be pure. Reading that question correctly keeps the chamber clean. Reading it wrong shows up fast, as dust on the specimen or as a humidifier that will not start.

Softening swaps one ion for another

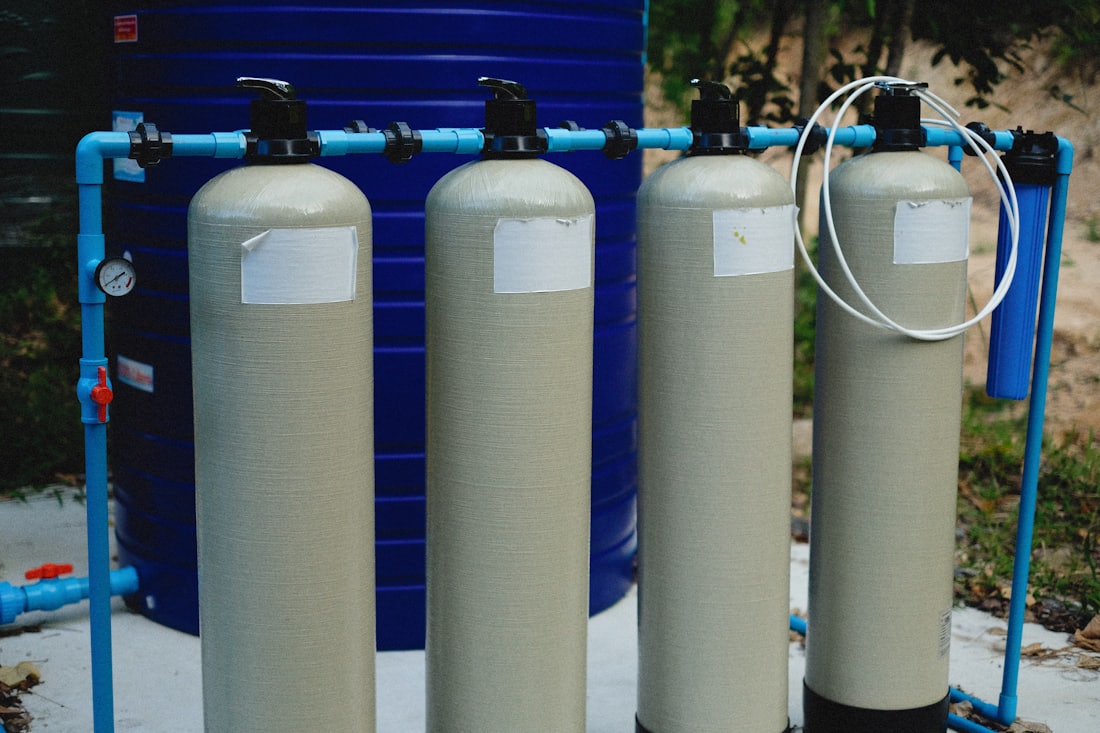

A water softener removes hardness by ion exchange, a swap that leaves the water as crowded with dissolved solids as it found it. Hard water carries calcium and magnesium, the two ions that build scale, dissolved alongside everything else the supply holds. The softener runs that water through a bed of resin charged with sodium. The resin takes up the calcium, it takes up the magnesium, releasing sodium into the water in their place. The hardness leaves. The dissolved-solid count does not. Chemistry forces a detail worth holding onto here. Each calcium ion carries two charges, so the resin releases two sodium ions to replace it, the same swap for each magnesium. The water leaves carrying more sodium ions than the calcium it gave up, so its conductivity holds steady or even climbs a little. A softener drives hardness toward zero. The total dissolved solids barely move, the meter reading nearly the same number going out as coming in. The point that matters for a humidifier follows from this. Softening does not chase purity. It only removes hardness. The water still conducts. The water still carries a full load of dissolved mineral, now wearing sodium where it once wore calcium. The bicarbonate that rode in with the hardness stays in the water too, pairing with the fresh sodium to form sodium bicarbonate, a salt too soluble to crust a hot surface. That single fact, hardness gone with the dissolved load left in place, decides every place softened water belongs, every place it fails.

The swap is selective by design. A softening resin holds a stronger grip on the doubly charged calcium and magnesium than on the singly charged sodium, so it pulls the hardness out preferentially as the water passes through. That selectivity is what lets a sodium-loaded bed strip calcium from the feed at all. The same selectivity reverses under a concentrated brine, the trick the recharge later uses to reload the bed. Nothing in the process touches the rest of the dissolved load, since the resin has no site to bind a sulphate or a chloride. Those ions ride through to the soft water untouched.

How a softener recharges

A softener works until its resin fills with the hardness it pulled from the water, the point of exhaustion. The resin started loaded with sodium. Each litre treated swaps a little of that sodium out for calcium, so the sodium store falls as the hardness store climbs. When the resin can hold no more, the softened water starts carrying calcium through, the breakthrough an operator catches on a hardness test. The unit then recharges. A strong brine, plain sodium chloride dissolved in water, floods the resin bed. The high sodium concentration reverses the exchange, driving the trapped hardness off the resin, reloading it with sodium for the next run. The displaced hardness rinses to the drain in the spent brine. A backwash flushes the bed clean. The cycle resets, ready for the next service run.

Salt consumption follows the hardness directly. A hard supply exhausts the resin fast, so it recharges often, eating more salt each month. A soft supply stretches every run, sipping salt slowly. A twin-tank softener keeps one bed in service while the other recharges, so the soft water never stops, a feature a chamber on continuous test values. A single-tank unit recharges on a timer or a meter, usually overnight, a short window where it draws on stored soft water or pauses the supply. The salt cost stays small either way, the cheapest running cost of any water treatment a chamber is likely to carry. An operator who lets the brine tank run dry loses the softening within a day, the resin unable to recharge, the hardness passing straight through to whatever the softener was meant to protect.

Reverse osmosis removes the dissolved solids

Reverse osmosis separates by force, not by swap. A pump pushes the feed water against a semipermeable membrane, a film with pores so fine that water molecules pass while most dissolved ions cannot follow. The water that crosses the membrane, the permeate, comes out stripped of the great bulk of its dissolved solids. A sound membrane rejects between ninety-five and ninety-nine percent of them, modern elements often clearing ninety-nine. The permeate leaves with a tiny fraction of the mineral the feed carried, its conductivity falling by the same proportion. Rejection is the figure that defines a membrane, the share of incoming solids it stops from passing, quoted as a percentage a meter can confirm at any time.

The rejected solids have to go somewhere. They leave in a second stream, the concentrate, water that carries the minerals the membrane held back. This reject stream runs to the drain. It accounts for a real share of the feed. A typical system recovers fifty to seventy-five percent of its input as permeate, so twenty-five to fifty percent leaves as reject. A site that treats every litre by reverse osmosis pays for that wasted quarter to half in water it buys then pours away. The recovery rate sets that part of the bill.

The membrane needs protecting to last. Fine suspended matter blinds it, so a sediment prefilter guards the front. Chlorine in a municipal supply attacks the common membrane material, so a carbon stage usually sits ahead of it too. Hardness scales the membrane surface, the same calcium carbonate that crusts a boiler, so many systems put a softener before the membrane to strip the hardness first. The membrane itself wears regardless. It fouls slowly over months, its rejection drifting down, until a replacement restores the system. A reading below ninety percent rejection marks a membrane near the end of its service life.

How a membrane is built

A reverse osmosis element packs a large membrane area into a small cylinder. The membrane is a thin-film composite, a dense active skin laid on a porous support, the skin doing the rejecting. Sheets of it wrap in a spiral around a central permeate tube, feed channels alternating with permeate channels through the roll. The feed water enters one end under pressure. Part of it crosses the membrane into the permeate channel, spiralling inward to the central tube as product water. The rest sweeps along the feed channel, growing saltier, leaving the far end as concentrate. Pressure is what drives the separation. It has to exceed the osmotic pressure of the dissolved solids before any water crosses, so a saltier feed demands a higher pump pressure to yield the same permeate.

Cold water slows a membrane. The permeate flow falls as temperature drops, since cold water moves through the film less freely, so a winter feed yields less product than a summer one at the same pressure. A system sized only for warm water can fall short when the supply turns cold. Membrane makers publish a temperature correction, letting a designer size the unit for the coldest feed it will meet. The flow recovers as the water warms, so the shortfall is predictable, sized for in advance by anyone who reads the curve.

What each treatment leaves in the water

The two treatments leave the chamber’s feed line in opposite states. Softened water reads almost the same dissolved-solid figure as the raw supply, the hardness now converted to sodium salts. Reverse osmosis water reads a fraction of that figure, the dissolved solids mostly gone. Put a conductivity meter on each. The softened water moves the needle nearly as far as the tap did. The reverse osmosis water barely registers. A softener is a hardness filter that keeps the water conductive. A reverse osmosis unit is a purity filter that strips the water toward non-conductive. The humidifier downstream turns on exactly this difference, since some humidifiers run on the conductivity that softening preserves, others fail on the very same conductivity that reverse osmosis removes.

A number makes the gap concrete. Take a supply at 300 parts per million of total dissolved solids, 150 of it hardness. Softened, that water still reads near 300 parts per million, the 150 of hardness riding now as sodium salts. Run the same water through reverse osmosis at ninety-seven percent rejection, it drops to roughly 9 parts per million, almost everything gone. The same feed has become two waters about thirty-fold apart in dissolved solids. The humidifier downstream meets entirely different water depending on which treatment sits upstream of it.

Reading the hardness off the water report

Both treatments size themselves to one figure, the feed-water hardness. A utility reports it as parts per million of calcium carbonate, or in some regions as grains per gallon, where a single grain runs about seventeen parts per million. A supply at 150 parts per million reads near nine grains, a moderately hard water by any measure. The figure sits on the annual report a utility publishes, free to anyone who asks for it.

The number swings widely by region, enough to change the entire plan. A laboratory drawing from a limestone aquifer can meet 300 parts per million or more, water that scales fast, water that loads a softener heavily. A site on soft surface water might read under 50, a gentle feed on either treatment. The softener on the hard supply recharges far more often, burning through salt. The membrane on the hard supply scales faster unless a softener guards it. The hardness figure sets the running cost of whichever route the chamber takes. A spot check with a cheap conductivity meter confirms the report in seconds, since conductivity tracks the dissolved mineral the hardness figure counts.

Softened water for the electrode boiler

An electrode steam boiler makes vapour by passing current straight through the water. Metal electrodes sit in the water. The current flows from one to the other, the water’s own resistance heating it to a boil. The method depends on the water conducting. Pure water blocks the current, so an electrode boiler fed reverse osmosis water sits cold, drawing almost nothing, unable to start. The water it runs on is conductive, in the range of roughly one hundred twenty-five to over a thousand microsiemens per centimetre.

Softened water suits this boiler well. The softening keeps the dissolved solids that carry the current, so the water still conducts on schedule. The softening also strips the calcium that would otherwise plate the electrodes as hard scale, the sodium salts left behind staying far more soluble. The boiler gets the conductivity it runs on without the worst of the crust that bare hard water bakes onto the electrodes. Reverse osmosis water does the opposite of what this machine needs, taking away the very ions it uses to heat. Feeding an electrode boiler on reverse osmosis water creates the classic mismatch, a water too clean to work.

Reverse osmosis water for the other humidifiers

Two other humidifier types invert the electrode boiler’s need. A resistive boiler heats the water with an electric element, the same way a kettle does, with no dependence on whether the water conducts. An ultrasonic source shakes a droplet cloud off a vibrating disc, again indifferent to conductivity. Neither one needs the dissolved minerals. Both suffer from them. For these two the dissolved solids are pure liability, so the water that suits them is the water with the solids removed, reverse osmosis water or deionised water, down toward five microsiemens per centimetre or lower.

A resistive boiler on high-mineral water scales its element exactly as a kettle furs up, the crust insulating the element until it overheats. An ultrasonic source on high-mineral water sprays that mineral into the chamber. So both reach for the lowest dissolved solids the site can supply. Reverse osmosis delivers that on its own for most duty. A deionising polish after it reaches lower still where the test demands it.

Why softened water still dusts an ultrasonic

Softened water fails an ultrasonic source for a reason worth spelling out. A softener removed the hardness. It did not remove the dissolved solids, it only changed them to sodium. An ultrasonic source makes no distinction by salt type. It aerosolises whatever is dissolved. The disc throws tiny droplets into the air, each droplet holding its share of dissolved solid, the water flashing off in the chamber to leave that solid behind as fine white dust. Sodium salts dust the chamber exactly as calcium salts would. The white powder settles on the specimen as a contamination that corrupts the result.

So softened water spraying from an ultrasonic head still dusts the chamber, because the dust does not come from hardness. The dust comes from dissolved solids, the load softening leaves fully in place. The same logic spares the electrode boiler the same trap, since that boiler boils its water, the steam leaving the minerals behind in the cylinder where a drain can carry them off. An ultrasonic source has no such cylinder. It sends the minerals straight into the air. That difference is why one humidifier tolerates a dissolved load the other cannot.

What softening leaves in the water

A softener acts on hardness alone. Everything else in the supply rides straight through. The sodium it adds stays, naturally. The bicarbonate that paired with the old calcium stays, bound now to sodium. Silica slips through untouched, a dissolved solid the resin cannot hold. So does the rest of the non-hardness load, everything a softener has no mechanism to catch. Softened water therefore carries nearly the full dissolved-solid count of the raw supply, minus the hardness it took out, carrying the sodium that replaced it. For a humidifier that is sensitive to dissolved solids, softened water is barely treated at all. The one thing a softener does, it does completely, removing the hardness. The rest of the load it leaves in place.

The cost ledger

Cost separates the two treatments as sharply as chemistry does. A softener is cheap to buy, cheap to run. Its only consumable is salt, the sodium chloride it uses to recharge the resin once the sodium runs low. It wastes little water, just the backwash that rinses the resin bed during a recharge. The running cost is a bag of salt on a schedule the water hardness sets.

Reverse osmosis costs more on every line. The unit itself runs higher to buy. It wastes the quarter to half of its feed that leaves as reject. Its membrane is a periodic replacement, a real recurring part, its life shortened by hard or dirty feed water. The prefilters ahead of it change on their own schedule. Reverse osmosis buys its low dissolved solids at a real price. Water goes to waste. Membranes need replacing. The bill runs higher across the board.

The right spend depends on the humidifier. An electrode boiler pairs with the cheaper softener, so its water treatment stays inexpensive. An ultrasonic or resistive source needs the costlier reverse osmosis, so its water treatment carries the higher running cost. The humidifier choice drags the water cost along with it, a line worth seeing before the chamber is bought, since a cheap chamber on the wrong humidifier can carry an expensive water habit for its entire service life.

Running the two in series

The two treatments are not always a choice between one or the other. They often run in series, each doing the job it does best. A softener placed ahead of a reverse osmosis membrane strips the hardness first, so the calcium never reaches the membrane to scale it. The membrane lasts longer on softened feed, its fouling slowed, its replacement interval stretched. Here softening serves reverse osmosis as a protective prefilter, the cheap stage guarding the costly one.

The chain can run further for the purest duty. A polishing bed of deionising resin sits after the membrane, pulling the last few ions the membrane let through, dropping the water toward ultrapure. A laboratory that needs the cleanest possible humidifier feed runs reverse osmosis for the bulk removal, deionising for the final polish, the two stages reaching a purity neither hits alone. The series costs the most to build. It also delivers the lowest dissolved solids of any route, the water a contamination-critical test requires.

Monitoring each system

Each treatment carries a check that tells the operator it still works. A softener shows its health two ways. The salt level in the brine tank has to stay topped, since an empty tank means the resin stops recharging, the hardness breaking through within a cycle. A hardness test on the softened water confirms the breakthrough point, a dip strip or a drop test reading the calcium that should not be there. Hardness climbing in the soft water signals resin near exhaustion, a recharge overdue.

Reverse osmosis shows its health through the permeate. A conductivity meter on the product water reads the dissolved solids the membrane let pass, the figure rising as the membrane fouls. Operators track rejection, the percentage of feed solids the membrane removes, calculated from the feed conductivity against the permeate. Rejection holding above ninety-five percent means a healthy membrane. Rejection drifting toward ninety percent means a membrane near replacement. The meter turns the slow decline of a membrane into a number an operator watches over months.

The sodium question

Softened water adds one thing the raw supply held less of, sodium. For most chamber work the sodium is harmless, just another dissolved solid in a humidifier already chosen to tolerate it. A few cases weigh it more carefully. A test on electronics sensitive to ionic contamination treats sodium as a corrosion driver, a salt that drives leakage across a board under humidity. A specimen heading for a salt-fog comparison should not meet stray sodium in the humidity stage first. For these, the sodium a softener adds counts as a mark against it, a reason to lean toward reverse osmosis even on a humidifier that softening would otherwise suit. The sodium added tracks the hardness removed, so a very hard supply hands the softened water a larger sodium load than a mild supply does.

Reverse osmosis adds nothing. It only removes. The permeate leaves with less of everything than it arrived with, sodium included, the membrane making no swaps the way a resin does. Where the test cannot abide any added ion, reverse osmosis suits on that ground alone, the purity bought with wasted water justifying itself against a contamination the softener would introduce. The decision turns on what the specimen can tolerate, read off the test plan before the water treatment is fixed.

Storing the treated water

Treated water does not hold its quality forever in a tank. Reverse osmosis water sits far from equilibrium with the air, as deionised water does, so a stored batch slowly draws carbon dioxide out of the atmosphere above it. The gas dissolves to form carbonic acid, a weak ionisation that lifts the conductivity back up over hours. Water that left the membrane very pure can read measurably higher by the time a humidifier draws on it the next day. A chamber that needs the lowest dissolved solids takes its water fresh, drawing from short, sealed storage.

Stagnant water carries a second risk. A tank left warm with no flow grows a biofilm on its walls, the bacteria feeding on the trace organics any supply holds. That film sheds into the water as a count of organic carbon, a contamination an ultrasonic source then sprays into the chamber. Softened water meets the same fate in a neglected brine tank or a dead leg of pipe. The cure is movement. A supply drawn often enough means no batch sits long. The lines get flushed before a test that demands cleanliness. A humidifier feed runs cleanest when it is drawn fresh.

The rule in one line

Softening changes the mineral so the water still conducts. Reverse osmosis removes the mineral so the water turns pure. Match the one your humidifier needs.

Matching the water to the humidifier

The decision reduces to the humidifier type, read off in a short list. An electrode steam boiler takes softened water, the conductivity preserved, the hardness removed. A resistive immersion boiler takes reverse osmosis or deionised water, the low mineral load keeping its element clean. An ultrasonic source takes reverse osmosis or deionised water without exception, since any dissolved solid it carries sprays into the chamber as dust. A chamber feeding more than one humidifier type plumbs the treatment each one needs. A single water rarely suits them all.

One mismatch costs more than the others. Feed an ultrasonic source on softened water, expecting the softening to have cleaned it, the chamber fills with sodium dust the moment the test runs. Feed an electrode boiler on reverse osmosis water, expecting pure water to be the safe default, the boiler will not start at all. Both errors trace to the same misreading, the belief that all water treatment moves toward purity. Softening does not. Softening moves toward softness, which is a different property of the water altogether.

Common questions

Does a water softener lower the TDS of the water?

No. A softener swaps the hardness ions for sodium by ion exchange, so the total dissolved solids leave almost unchanged. The hardness falls toward zero. The dissolved-solid count, the figure a conductivity meter reads, holds nearly steady, since two sodium ions replace each calcium or magnesium ion. Softening treats hardness. It does not deliver purity.

Can I use softened water in an ultrasonic humidifier?

No, softened water still dusts the chamber. An ultrasonic source aerosolises whatever the water holds dissolved. Softening left the dissolved solids in place as sodium salts, so the droplets still carry solid that dries to white powder on the specimen. An ultrasonic humidifier needs reverse osmosis or deionised water, the dissolved solids actually removed, down toward five microsiemens per centimetre.

Why does an electrode boiler need conductive water?

An electrode boiler passes current through the water itself to heat it, so the water has to conduct. Reverse osmosis water, stripped of its ions, blocks the current, leaving the boiler unable to start. Softened water keeps the conducting ions while shedding the scale-forming hardness, so it suits the electrode design well. The working conductivity for these boilers runs roughly one hundred twenty-five to over a thousand microsiemens per centimetre.

How much water does reverse osmosis waste?

A reverse osmosis system recovers fifty to seventy-five percent of its feed as usable permeate, so twenty-five to fifty percent leaves as reject water down the drain. A softener wastes far less, only the periodic backwash of its resin bed. The reject stream is the running cost of reverse osmosis that softening avoids. A site choosing between them on a tight water budget weighs that waste directly.

Should a softener sit ahead of a reverse osmosis unit?

Often, yes. A softener placed ahead of a reverse osmosis membrane removes the hardness before it can scale the membrane, so the membrane fouls slower, lasting longer between replacements. The softener protects the costlier stage. For the purest feed, a deionising polish after the membrane drops the water further still. The series delivers the lowest dissolved solids of any route, at the highest running cost.

Which water does my chamber humidifier need?

Read it off the humidifier type. An electrode steam boiler takes softened water for its conductivity. A resistive boiler takes reverse osmosis or deionised water for its low mineral load. An ultrasonic source takes reverse osmosis or deionised water without exception. Check the manufacturer’s stated supply specification against the treatment on site, since a mismatch either dusts the chamber or stops the humidifier cold.

Part of the Envsin guide to chamber humidification. Settle the humidifier type first, then plumb the water treatment that type requires.
