A smartphone reaches burn-in as a finished thing, a sealed glass slab holding a charged battery, a processor that heats itself under load, three radios, and a bright display. Running it hot on a line to flush out the units that would fail young screens the finished product at once, catching faults a chip-level burn-in never sees. The hard part is the battery. A charged cell, sealed in and run warm, is the hazard the cell is built around, and it caps how hot the test can go. Smartphone burn-in is finished-product burn-in, with the battery as the thing that makes it both different and dangerous.
Burning in a smartphone is not the same job as burning in the chip inside it. A chip is a bare component, run hot in isolation to drive out its early failures before it is assembled into anything. A smartphone is the assembled thing, complete and powered by its own battery. Burning it in tests the finished product as a customer will hold it. That changes what the burn-in catches, what the chamber has to manage, and above all what it has to keep safe, because a finished phone brings a charged battery, its own heat, live radios, and a glass surface that has to leave the line unmarked. The chamber that burns in finished phones is a robotic temperature and humidity chamber like any other in its bones, fed by an arm and held at condition, and shaped in everything it does by the particular thing it holds, a consumer device that must come out both screened and saleable.
The reason to burn in a finished phone, when its parts were already burned in, is that a phone is more than its parts. The components were screened before assembly. The act of assembling them introduces faults of its own, a marginal solder joint on the main board, a connector not fully seated, a flex cable stressed in the fold, a battery contact that will fail under heat. None of these exists until the phone is built, so none can be caught by burning in the chip or the board alone. Finished-product burn-in runs the assembled phone hot to force out the early failures that live in the finished phone, the ones born of putting the pieces together. It also tests interactions a part-level screen cannot reach, the processor heating the battery beside it, the display drawing current as the radios transmit, the thermal and electrical crosstalk of a real device under real load. The early failures this targets are the same first stretch of life that any burn-in addresses, the window where a latent flaw shows itself. The principle of screening every unit through that window is the burn-in idea covered on its own. What is particular here is the subject, a complete phone, screened as the integrated product it is. The case for finished-product burn-in rests on where faults are born. Each component arrived already screened, so the failures left to find are the ones the assembly itself created, in the joints, the connectors, the cables, and the contacts that exist only once the phone is assembled. A part-level burn-in, however thorough, is blind to these by definition, because the thing they belong to did not exist when the part was tested. The finished screen is the only one that sees the phone the customer will hold.
The one fact that shapes smartphone burn-in above all others is the battery. A finished phone holds a charged lithium-ion cell, sealed inside. That cell is both the reason the test must be careful and the limit on how far it can go. Lithium-ion cells are safe within a moderate temperature band, roughly zero to sixty degrees, and begin to degrade above about eighty. Push a cell far higher and it can reach thermal runaway, a self-feeding reaction that starts somewhere around a hundred and fifty to a hundred and eighty degrees and, once started, cannot be stopped, venting flammable and toxic gas and climbing past three hundred degrees. That single chain of facts dictates the burn-in. A bare chip can be cooked at a hundred and twenty-five degrees to accelerate its failures. A phone cannot, because the battery inside it would leave its safe band long before. Smartphone burn-in therefore runs at moderate elevated temperatures, warm enough to stress the phone and draw out weak units, held well below where the battery turns dangerous. The battery is a ceiling on the heat. It is also a hazard to be watched, because a faulty cell can swell, overheat, or vent even at a moderate temperature that a sound cell tolerates without trouble. The cell that burns in phones therefore does more than hold a temperature. It watches each phone for the signs of a battery going wrong, a rising case temperature, a swelling, an out-of-range reading from the phone’s own sensors. It is built to contain one bad cell so that a single phone failing cannot set its neighbours alight. Nothing about a passive component asks this of a chamber. A charged battery, sealed in a flammable glass-and-plastic body and run hot among hundreds of its kind, makes containment and watchfulness part of the chamber’s job. This watchfulness is not excess caution. A burn-in deliberately stresses units to make the weak ones fail. Among phones, the worst failure a stressed unit can reach is a battery going into runaway. The screen exists to find bad units, so a bad unit reaching its worst behaviour during the run is the case the cell plans for. Designing the cell is partly designing for the failures it is meant to provoke, with the battery’s the one that carries fire. The chamber that burns in phones is therefore built to take a battery fault in stride, to sense it early, cut the power, isolate the phone, and keep one cell’s trouble from spreading down a rack of hundreds. The moderate temperature that protects sound batteries also keeps a faulty one’s failure containable. A cell that vents at a warm burn-in is a far smaller event than one driven to the edge of runaway by heat.
The battery is a ceiling on how hot the test can go, and a hazard the cell has to watch the entire run.
A passive component only feels the heat the chamber gives it. A running phone makes its own. The processor under load, the display at full brightness, the radios transmitting, all turn electrical power into heat inside the sealed body, so a phone in a warm chamber runs hotter than the chamber alone, by however much its own work adds. This changes the thermal picture in two directions at once. The chamber has to bring the phone to a stress temperature without overheating the processor’s junctions, which the phone’s own heat is already pushing up. It has to do that while keeping the battery in its safe band, which the same heat is pushing toward its limit. The two constraints pull against each other, since the heat that stresses the silicon is the heat that endangers the cell. Getting the burn-in right is a matter of choosing a chamber temperature and a workload that together hold the phone in the narrow zone where it is stressed enough to flush its weak units and still cool enough to keep the battery safe. A phone that runs itself hot is doing part of the burn-in’s work. The chamber has to account for that self-heating, since the air temperature is only part of what the phone reaches. The self-heating also shifts with the workload, so a phone driven harder by the burn-in app runs hotter from within, where the chamber temperature that suited a light load may push a heavy one too far. Tuning a phone burn-in is tuning the chamber and the workload together, as a pair, so that the heat from outside and the heat from inside add up to the stress the screen wants and no more. A chamber set as if the phone were a passive load would miss that the phone is a heater in its own right.
A phone is exercised by software. Where a bare chip is driven by test signals on its pins, a finished phone runs a burn-in application that loads it the way real use would, only harder and without pause. The app drives the processor and graphics to a high load to make them work and heat, lights the display, runs the radios, reads and writes storage, and cycles the phone through the states a hard day of use would reach. It is the dynamic part of the burn-in, exercising the phone while it bakes so that a fault shows in the act, during the run. The same app reads the phone’s own sensors, its temperatures, its battery state, its error logs, so the cell can watch each phone through its run and pull one that misbehaves. This software exercise is how a finished phone is stressed and watched at once, a single program, both the load that draws out a weak unit and the instrument that catches it failing. A phone that passes has run that program hot, under load, for the full burn-in time, and reported itself sound throughout.

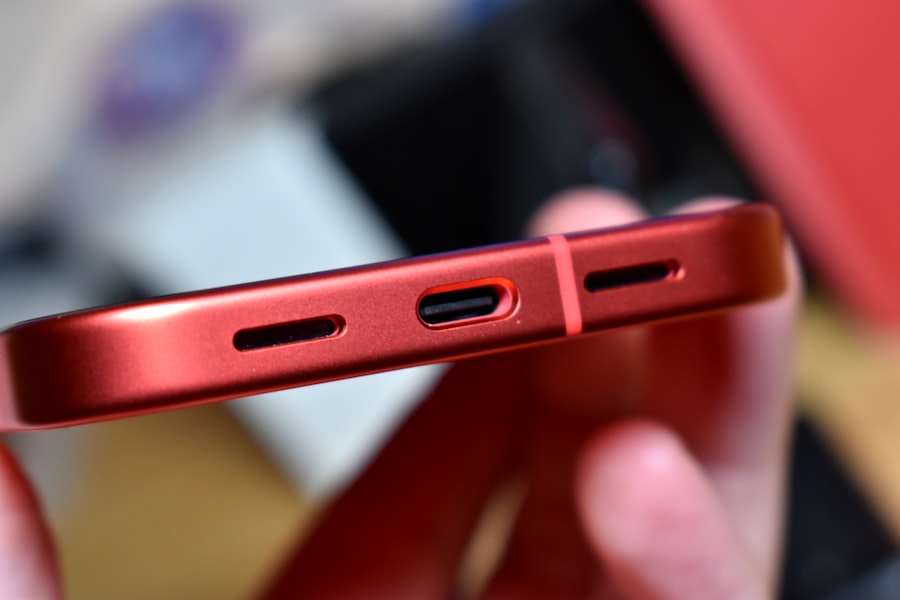

A finished phone gives the cell one way in. Where a bare board offers test pads and edge connectors, a sealed phone presents a single charging port. That port has to carry everything, the power to keep the phone charged through a long run and the data to load it and read it back. Docking the phone means seating a connector into that one port precisely, which the robot does as it places the phone, aligning a small plug to a small socket on a glass body that gives no second chance. The single port shapes the cell. It means the phone is held in a cradle that presents the port to a dock, that the dock supplies both charge and the data link the burn-in app rides on, and that a failure to seat cleanly leaves the phone neither powered nor reachable. Some cells reach a phone wirelessly for the data, over its own radios, to spare the port. Power still has to flow, by the port or by a wireless charging pad where the phone supports one. The constraint of a single sealed interface, where a bare board offers many, is one more way a finished phone asks more of the cell than a component does. The dock also has to last. A connector cycled into a port thousands of times a day wears, so a worn dock that no longer seats cleanly fails phones that are sound, so the docking hardware is itself a part the cell has to maintain. A phone that will not power or talk is indistinguishable, at first, from a phone that failed the test, so a reliable dock matters as much to a trustworthy result as the chamber does.
A phone burns in with its radios live, and radios inside a metal chamber are a problem of their own. A test chamber is a metal box. Metal reflects radio waves, so a phone transmitting inside one sits in a chamber of echoes that can disturb its own radios and any measurement made of them. If the burn-in only needs the radios powered and working, the reflections may not matter much. If it needs to judge how well a radio performs, the metal box has to be tamed, lined with absorber or arranged so the reflections do not corrupt the reading. The radios also fill the chamber with energy that can leak out and disturb the world beyond it, or pick up interference from the chambers around it on a line of many. A phone burn-in that exercises the radios seriously has to treat the chamber as a radio environment beyond a thermal one, controlling what bounces inside and what crosses its walls. This is a concern a thermal burn-in of a passive part never raises. It follows directly from screening a device whose job is partly to transmit. The simplest cells sidestep the worst of it by asking the radios only to be present and functioning, a low bar a chamber of echoes can still clear. A cell that has to measure a radio’s strength or quality has a harder task, and may need an interior that absorbs the energy where a bare box reflects it, closer to a small anechoic space than a plain metal box. How far to go depends on what the burn-in must prove about the radios, from alive to measured and graded.
Where the burn-in adds humidity, the sealed phone meets damp in its own way. A modern phone is built to resist water to a degree, sealed against the ports and along its seams, so a damp-heat burn-in puts that sealing to the test alongside the electronics, since moisture that finds a path past a seal, into a port or under the glass, can corrode a contact or fog a display from within, the early sign of a seal that will fail. A phone brought cold into warm room air also beads with condensation on its outer surface, which has to clear before the phone is handled or imaged, a problem the vision and handling side of the cell has to manage. Damp-heat burn-in of a phone, then, is partly a test of whether the product keeps water out where it should. The chamber adds humidity to find the units whose seals do not, before a customer finds them in the rain. A phone whose seal fails in a damp-heat burn-in has been caught at the only good moment to catch it, in the factory, well before it could let water in inside a customer’s pocket. The sealed body that makes a phone hard to probe from the outside is the same body whose integrity the damp-heat run is there to prove.
The verdict on a finished phone is whether the entire device works, which is a richer question than whether one parameter is in range. The burn-in app gathers the answer from inside the phone, running its self-tests, reading its sensors, checking that the processor computes correctly, the display lights evenly, the radios link, the storage holds, the battery charges and reports a healthy state. A phone passes by coming through the full run with all of that intact, and fails on any one of them going wrong. Because the phone reports on itself through the app, the cell does not need to probe it from outside for much of what it checks, since the device carries the instruments to judge itself and only has to be asked. The result recorded for each phone is a verdict on the integrated product, tied to that phone’s identity for tracking, the same per-unit record any line burn-in keeps. What is particular is that the thing judged is a complete phone. The judgment is the sum of everything a working phone must do, gathered from the phone’s own account of its run. This self-report is efficient, since the phone already carries sensors and logs richer than anything the cell could attach from outside, needing only to be asked for them. It also has a limit worth naming. A fault that disables the phone’s own reporting can hide itself, so a phone that goes dark is treated as a failure on its face, never given the benefit of a doubt, because a phone that cannot say it is well is not to be trusted to be well.
A burned-in phone is a phone a customer will buy, so it has to leave the cell as flawless as it entered. A chip is hidden inside a product and can bear a handling mark without anyone caring. A finished phone is the product, its glass and its finish part of what is sold. A scratch put on it during burn-in turns a good unit into a reject the burn-in itself created. The cell has to handle the phone gently throughout, gripping it on padded surfaces that will not mar the glass, moving it on paths that do not scrape it against anything, docking and undocking without scuffing the port or the body. This is a constraint the burn-in of a bare component never carries. It adds an entire discipline of careful handling to a process otherwise about heat and load. A phone that passes its burn-in but comes out scratched has still failed, because it can no longer be sold as new. The cell that screens for hidden faults must take equal care not to inflict visible ones.
Phones are made in enormous numbers, and that scale presses on the choice of how much to burn in. Screening every phone built costs real time and chamber capacity, multiplied across millions of units, which a maker weighs against the price of letting an early failure reach a customer. For a flagship phone, where a field failure means a costly return and a bruised brand, full screening of every unit can pay for itself. For a low-margin model in vast volume, a maker may burn in a sample, accepting that a few early failures will slip through as the cost of not screening all. The decision of whether to screen every unit or a sample is the general burn-in trade, the property of an early failure being individual to a unit weighed against the cost of catching it. It applies to phones as to anything else. What the phone adds is the sheer scale, so that even a small per-unit burn-in cost becomes a large number across a production run, and the brand stakes of an early failure in a consumer’s hands, which can push a maker toward screening every unit despite the cost. The scale also shapes the cell itself. A line built to burn in phones by the million is a wall of chambers fed without pause, where a few seconds saved on each phone, or a few more phones in each chamber, compounds into real capacity across a run. The economics of phone burn-in are the economics of a high-volume consumer product, where small per-unit numbers turn large, and where the cost of the screen and the cost of a field failure are both multiplied by a volume few other products reach.
Smartphone burn-in is the general idea of burn-in applied to a thing that complicates every part of it. The subject is a finished product, a complete phone where a chip burn-in has only a part, so the screen catches the faults of assembly and integration a part-level burn-in cannot. The phone carries a charged battery, which caps the temperature the test can use and adds a hazard the cell must watch and contain. The phone heats itself under load, so the chamber shares the thermal job with the device. The phone is exercised by software, docked through a single port, and burned in with live radios in a metal box. It is sealed against humidity, judged by its own account of itself, and it has to come out unmarked and saleable. Each of these follows from the one fact that the thing being burned in is a complete consumer phone with a battery in it. A chamber that does this well is a robotic temperature and humidity chamber built around that fact, screening finished phones at volume while keeping the gravest hazard it holds, the battery, safely within the band where it can be trusted.
A chip is a bare component, screened in isolation and able to be run far hotter. A phone is the finished, assembled product, powered by its own battery, so its burn-in catches faults that only appear once the parts are put together, and it must run at a moderate temperature the battery can tolerate. It is exercised by software, judged on whether the complete device works, and it has to come out unmarked because it is the thing the customer buys.
A lithium-ion cell is safe only in a moderate band, roughly zero to sixty degrees, and degrades above about eighty. Far higher, it can reach thermal runaway, a self-feeding reaction that cannot be stopped once it starts. A bare chip can be cooked at a hundred and twenty-five degrees. A phone cannot, because the battery would leave its safe band first. Phone burn-in therefore runs warm enough to stress the phone and stays well below where the cell turns dangerous.
By a burn-in application running on the phone itself. The app loads the processor and graphics, lights the display, runs the radios, and exercises storage, driving the phone hard while it bakes so a fault shows during the run. The same app reads the phone’s own sensors and error logs, so the cell can watch each unit and pull one that misbehaves. The software is both the load that stresses the phone and the instrument that catches it failing.
A charged lithium-ion cell stores energy, and a faulty one can swell, overheat, or vent even at a moderate temperature a sound cell tolerates. Run hot among hundreds of its kind, one bad cell could endanger its neighbours. The cell watches each phone for a rising case temperature, swelling, or an out-of-range sensor reading, and is built to contain a single failing battery so it cannot set off the phones around it.
Because the phone is the finished product the customer buys, and its glass and finish are part of what is sold. A scratch inflicted during burn-in turns a sound phone into a reject the process itself created. The cell has to grip the phone on padded surfaces, move it on paths that do not scrape it, and dock it without scuffing, screening for hidden faults while taking equal care not to add a visible one.
