Power Temperature Cycling Test Chamber Per JESD22 A105

A passive cycle swings only the chamber air. A105 powers the part too, so it heats itself on top of the ambient swing. The die rides two heat cycles at once, which is what a power part feels switching on and off in service.

A power temperature cycling test runs two heat cycles on a part at the same time. The chamber swings the ambient temperature from a cold extreme to a hot one. The test also powers the device on and off, so it heats itself under load the way it does in service. The standard behind it is JESD22-A105. A plain temperature cycle leaves the power off, swinging the part with the air alone. A105 adds the self-heating that a working part carries, the second cycle that a power device lives under every time its load turns on. The damage both cycles drive is the same, a thermomechanical fatigue at the joints inside the package, where materials of different expansion pull against each other on every swing.

Two heat sources, not one

A power temperature cycling test heats the part twice over. The chamber swings the air around it from cold to hot, then back, the cycle any temperature test runs. The part also heats itself. The test powers it on, so it dissipates heat the way it does in service, then powers it off to let it cool. The die warms above the air every time the power comes on. So the die rides two temperature cycles at once. The chamber’s ambient cycle moves the entire part together. The power cycle moves the junction on its own, swinging it higher than the air whenever the device conducts. The junction sees the larger swing of the two, the ambient rise with its own self-heating on top. A passive temperature cycling test leaves the power off. It moves the part with the air alone, missing the self-heating that a working part feels. A105 adds that missing half. It runs the device the way the field does, hot under load, cool at rest, while the chamber drives the ambient swing underneath. The damage comes from mismatch. Every material in the package expands at its own rate as the temperature climbs. The silicon die expands at one rate. The die-attach beneath it expands at another. Every other layer moves a different amount again. Cycle them together for thousands of rounds. The joints between them fatigue, then crack, then lift. The test exists to find that fatigue before the field does, by aging the part through the same two heat cycles it will live under, only faster.

The two cycles superimposed

Start with the chamber’s cycle. The air in the chamber ramps from a cold extreme to a hot one, then holds at each end before ramping back. A common range runs from minus 40 degrees Celsius to plus 125. The whole part follows the air, since it sits in that air with the power off between excursions. This is the cycle a passive temperature test would apply on its own.

Now add the power. The test switches the device on at points in the cycle, so it conducts current, so it dissipates heat at the junction. The junction climbs above the surrounding air by however much the power dissipation drives it. Switch the power off. The junction falls back toward the air. This on-off heating is a second cycle, faster, more local than the chamber’s, centred on the die.

The two cycles land on the same die together. At its hottest the junction sees the chamber’s hot extreme with its own self-heating added above it. At its coldest it sees the chamber’s cold extreme with the power off. The junction’s total swing runs wider than the air’s swing alone. That wider swing at the junction is the stress A105 adds over a chamber-only cycle.

Why a power part needs this

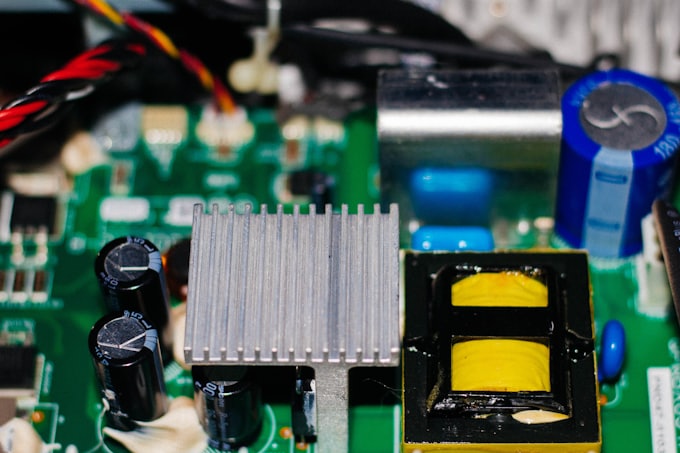

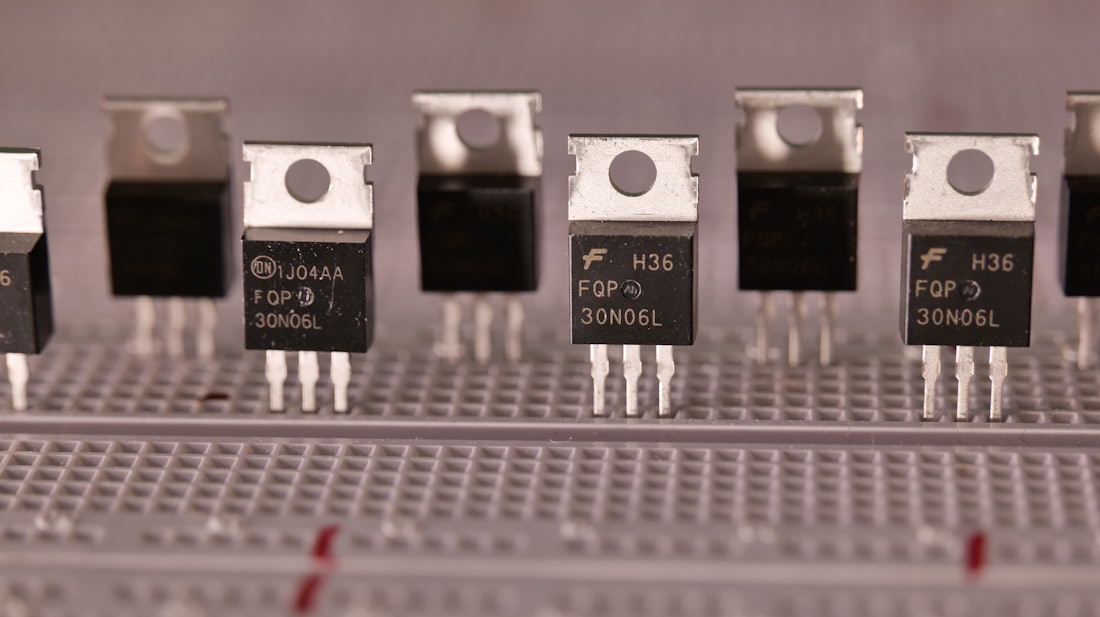

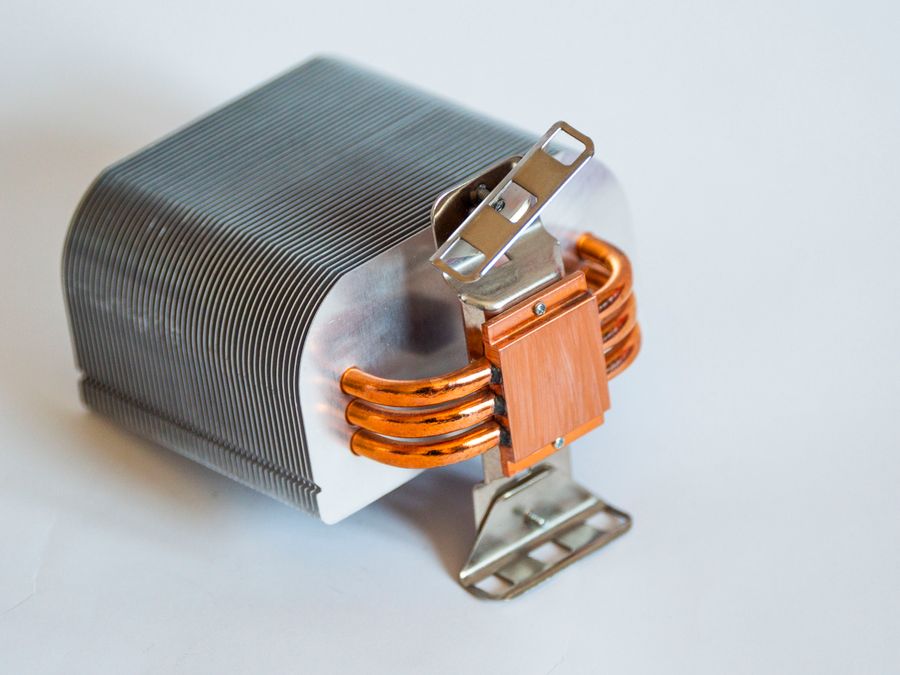

A power device does its job by dissipating heat. A power transistor runs hot under load by design. So does a rectifier or a module switching a motor. In service it heats up when it conducts, cools when it idles, over and over through its working life. The junction cycles every time the load turns on or off. That self-heating cycle is a real stress the part lives under, far from a laboratory invention.

A passive temperature cycle misses that stress. It swings the air, so it ages the part against the ambient change. It leaves the self-heating out, since the power stays off. For a part that barely dissipates, that is fine, the ambient swing covers the real stress. For a power part, it tests only half of what the field applies. A105 powers the part so the test covers both halves, the ambient swing under the self-heating swing.

The fatigue that builds

The damage takes the form of thermomechanical fatigue. Every material in the package has its own coefficient of thermal expansion. The silicon die expands little as it heats. The copper lead frame expands far more. The die-attach between them sits caught in the difference. Each temperature swing strains that joint, since the two sides it bonds grow by different amounts.

The die-attach fails first in many parts. It carries the heat from the die to the case, so any crack in it raises the path’s resistance to heat. A degraded die-attach lets the junction run hotter for the same power, which speeds its own further damage. The crack spreads across the attach with each cycle, a slow delamination that the test drives to the point of failure.

Wire bonds fatigue in their own way. A bond wire joins the die to a pin, expanding with each heat cycle, flexing where it meets the pad. The repeated flex works the bond loose over thousands of cycles. The wire lifts off the pad, or cracks at its heel, opening the connection. Heavy power wires in a module feel this strongly, since they carry the heaviest current, the heaviest heat.

Solder joints carry the same risk lower down. The solder under a package, or under a power module’s baseplate, joins parts with mismatched expansion. Power cycling fatigues that solder the way it fatigues the bonds, cracking it slowly until the joint fails or its resistance climbs. The fatigue concentrates wherever two materials of different expansion meet across a temperature swing.

The conditions

The ambient range sets the outer cycle. A common span runs from minus 40 degrees Celsius to plus 125, the same extremes a passive cycle uses. The part dwells at each extreme long enough to reach the temperature throughout, then transitions to the other. A transition with its dwell often runs in the twenty to thirty minute range, so a full cycle takes the better part of an hour.

The power side adds its own timing. The device switches on for part of the cycle, off for the rest, sized so the junction reaches its working temperature each time. The cycle count runs to the thousands, since fatigue builds slowly and needs many rounds to surface. The qualification plan fixes the exact range. It sets the timing and the cycle count too, matched to the duty the part will see.

A105 against passive cycling

Two cycling tests sit side by side in the standards. Passive temperature cycling, the A104 method, swings the chamber air with the part unpowered. It ages the part against the ambient change alone. A105 powers the part during the cycle, so it adds the self-heating the part makes under load. The difference comes down to the junction’s own swing, present in A105, absent in A104.

The choice follows the part. A device that runs cool takes the passive cycle, since it has little self-heating to add. A power device takes A105, since the self-heating is a real part of its stress. Running a power part on the passive cycle alone understates what the field will do to it. Running it on A105 puts both heat cycles where they belong, on the die together.

What the equipment must do

The setup is a temperature cycling chamber joined to a power rig. The chamber does the ambient half. It ramps from the cold extreme to the hot extreme on a schedule, holds each, transitions on a controlled ramp. It holds the air uniform across the working space, so every part on the rack sees the same ambient cycle.

The power rig does the active half. It supplies the rated current to each device, switches it on, then off, in step with the test, holds the timing across thousands of cycles. The switching has to stay in sync with the part’s thermal response, so the junction reaches its target each time. The rig powers many parts at once, since a cycling test runs a batch for a statistical result.

The wiring has to cross into the chamber. Sealed feedthroughs carry the power leads through the wall, so the rig outside can drive the parts inside. The leads handle real current, since power devices draw far more than a signal pin. The feedthroughs hold against the temperature extremes without cracking or leaking, cycle after cycle.

Junction monitoring runs alongside the cycling. The rig watches each device for the signs of fatigue, reading an electrical parameter that tracks the junction temperature. A drift in that reading flags a part whose thermal path is degrading. Catching the drift live shows the failure building, well before the part opens outright.

Safety frames the design. The chamber holds extremes that would burn or freeze a hand. The power rig drives real current into a sealed hot box. Interlocks keep the chamber shut during a run. They cut the power on a fault, then vent the heat safely. The combined machine carries more hazard than either a plain chamber or a plain power supply, so it gets built to handle both.

Watching the junction

The junction temperature cannot be probed directly inside a sealed package. The test reads it through a temperature-sensitive electrical parameter, a TSEP. A common one is the forward voltage of a junction at a small known current, since that voltage shifts in a steady way with temperature. Measure the voltage, infer the junction temperature.

The same readings expose the slow degradation. Thermal resistance from junction to case tells how well the heat path carries heat away. A rising thermal resistance means the die-attach is cracking, since the crack blocks part of the path. The rig computes that resistance from the power put in against the junction temperature reached, tracking it cycle over cycle.

The trend matters more than any single reading. A junction temperature creeping up for the same power points to a thermal path going bad. A forward voltage drifting marks the same decline. Plotting the trend across the cycles turns a slow fatigue into a curve, one that flags the failure before it lands.

Reading the result

A failure shows up as an electrical change past a limit. An open circuit points to a wire bond that has lifted or cracked. A climbing resistance points to a fatigued solder joint or a degraded die-attach. A junction running hot for its power points to a cracked thermal path. Each signature ties to a fatigue site a cross section can confirm.

The cycle count at failure carries the meaning. A part that survives the planned thousands of cycles passes. A part that opens early fails, with the cycle number marking how soon. The number feeds the reliability model, since it sets how many on-off cycles the part withstands before fatigue ends it. That figure is what a designer needs to rate the part for a real duty.

The rule in one line

A power part lives under two heat cycles at once, one from the chamber, one from its own load. A105 runs both to age the joints the way the field will.

Matching the chamber to the test

The test calls for two machines working as one. A temperature cycling chamber swings the ambient between the extremes, uniform across the load, on a controlled ramp. A power rig drives, then switches the devices in step, through sealed feedthroughs rated for the current. Junction monitoring tracks each part for the fatigue. A plain temperature chamber covers only the ambient half.

The power side is what separates A105 from a passive cycle. Anyone specifying the test sizes the chamber for the ambient range, with the ramp, then sizes the rig for the current it switches, with the junction readout. The two have to stay in step, the power cycling timed to the ambient cycling, so the die feels both swings as the part will in the field.

Common questions

What does JESD22-A105 test?

A105 tests a device under power and temperature cycling at the same time. The chamber swings the ambient temperature, commonly from minus 40 to plus 125 degrees Celsius. The test also powers the device on, then off, so it self-heats under load and cools at rest. The combined stress ages the package through the two heat cycles a working power part lives under.

How is A105 different from passive temperature cycling?

Passive temperature cycling, the A104 method, swings the chamber air with the part unpowered. A105 adds power, so the device heats itself during the cycle. That self-heating gives the junction a swing of its own, on top of the ambient swing. A power part feels both in the field, so A105 covers what a passive cycle leaves out.

What fails in power temperature cycling?

The failures come from thermomechanical fatigue, driven by mismatched expansion. The die-attach cracks, raising the heat path’s resistance. Wire bonds fatigue, then lift off their pads. Solder joints under the package or baseplate crack with the cycles. Each comes from two bonded materials expanding by different amounts every time the temperature swings.

What temperature range does A105 use?

A common ambient range runs from minus 40 degrees Celsius to plus 125, the same extremes a passive cycle uses. Each extreme is held long enough for the part to reach temperature, with a transition of roughly twenty to thirty minutes between ends. The cycle count climbs into the thousands, since fatigue needs many rounds to surface. The exact values come from the qualification plan.

How is the junction temperature measured?

The junction sits sealed inside the package, so the test reads it indirectly. A temperature-sensitive electrical parameter, often the forward voltage of a junction at a small current, shifts with temperature in a known way. Measuring that parameter gives the junction temperature. Tracking it across cycles also shows the thermal path degrading, since a rising thermal resistance signals a cracking die-attach.

Why power the part during the cycle?

Because a power part heats itself in service, on top of any ambient change. Cycling the chamber alone reproduces the ambient swing, leaving out the junction’s own swing under load. The self-heating drives real fatigue at the die-attach, at the bonds. Powering the part during the cycle puts that stress back, so the test matches what the field does to a working device.
