Pharmaceutical Stability Chamber Compliance Under GMP With IQ OQ PQ And Part 11 Data Integrity

The box is not the point

Steadiness is not compliance.

What GMP asks of a stability chamber

GMP does not care that a chamber is expensive or that its display reads the right number. It asks a narrower question: can you prove, on paper an inspector will read years from now, that this box held the climate it claimed for the whole study, and that the record could not have been edited without a trace. A chamber clears that bar only when it is qualified before the first study and held under control through every study after.

Why a qualified chamber and a good chamber are not the same

A chamber can hold twenty-five degrees and sixty percent to a hair and still fail an inspection, because GMP does not test the box; it tests the evidence that the box did what the protocol demanded. That distinction is the whole of compliance. A good chamber performs; a qualified chamber performs and can prove it performed, in a chain of documents that begins before it is switched on and does not break for the life of the equipment. The chain starts with installation qualification, which records that the unit installed is the unit that was specified, down to its serial number, its power and water supply, its placement, and the manuals and certificates that came with it, so that years later no one has to wonder whether the box in the corner is the one the paperwork describes. It runs through operational qualification, which drives the empty chamber across its working range and proves that it reaches each set point, holds it within tolerance, recovers after a door is opened, recovers after the power drops, and raises the alarms it should when pushed past its limits. It reaches performance qualification, which loads the chamber the way a real study will and proves, over days and often across seasons, that the climate stays true in the gaps between the trays and not only at the sensor on the wall. Underneath all of it sits calibration, every probe checked against a reference that traces back through an unbroken line to a national standard, with its accuracy and its uncertainty written down, because a reading is only as trustworthy as the instrument that made it. Wrapped around the whole is data integrity, the demand that every reading be attributable, legible, recorded at the moment it happened, original, and accurate, kept in a system that timestamps it and forbids a silent edit, so the flat line an auditor sees on the chart is the line the chamber itself drew and not one a tired technician tidied up. A chamber missing any link in that chain can run a flawless study and still have it thrown out, since in a regulated world an unprovable result is no result.

IQ, the dullest qualification

Installation qualification is the dullest step and the one auditors lean on hardest. It records that the chamber delivered is the one that was bought, by serial number and model, that it sits where the plan put it, that its power and water and drainage match its needs, and that every manual, certificate, and software version is on file. It touches no performance at all; it builds the baseline against which a probe replaced in year three or a controller updated in year four can later be traced.

OQ, where the chamber meets its limits

Operational qualification is where the empty chamber is pushed to find out what it can do. It is driven to the low and high ends of its temperature and humidity range and held at each, and the result that matters is not whether it touches a set point once but whether it sits there inside tolerance hour after hour, the spread between its warmest and coolest reading staying small the whole time.

The recovery tests are the heart of it, and they are why a study can trust the box at all. A door is opened for a fixed time and held, and the climb back to set point is timed against a limit, because a study pulls its timepoints by opening that door, and a chamber that takes an hour to recover bleeds a little damage into the samples every time someone reaches in. The power is cut and the return is watched, since a box that cannot ride out a short outage will lose its climate on the first storm. Each alarm is provoked on purpose, the temperature pushed past its high limit and the humidity past its low, to confirm the warning truly fires and reaches a person rather than blinking unseen on a panel. Only once the empty chamber has proven all of this is it allowed to hold anything that counts.

PQ, the test that looks like the real thing

Performance qualification loads the chamber the way a study will, trays and racks in their working positions, and measures the climate throughout that load rather than at the single sensor on the wall. A grid of probes is laid through the space for days, mapping the warm and the dry corners that appear once a full load changes how the air moves, and many labs repeat the run across the seasons, since a chamber that holds against a dry winter can lose the fight against a humid summer. Whatever volume survives that test is the qualified working space, and samples sit only inside it.

A study earns its chamber first

A study only trusts a chamber that proved itself, on paper, before the first sample ever went in.

Calibration back to a national standard

A chamber's readings are only as honest as the probes that make them, so GMP asks that every probe be calibrated against a reference whose own accuracy traces, through an unbroken series of comparisons, back to a national or international standard, with each calibration recording not just a pass but the measured error and the uncertainty around it. Calibration runs on a schedule, and a probe found out of tolerance triggers a look back at every reading it took since it was last known good, since a sensor that drifted in silence may have passed a study on a climate that was never there.

Data integrity, and the ALCOA test

The record matters as much as the climate, and GMP measures it against a short list of letters, ALCOA. Every reading has to be attributable to a named source and a time, legible rather than a smudge no one can read, contemporaneous with the event instead of written up later from memory, original rather than a hand-copied transcription, and accurate. Each word closes a door that fraud or carelessness would otherwise leave open.

Later guidance stretched the list to ALCOA+, adding that the record be complete, with nothing quietly dropped, consistent in its sequence and its timestamps, enduring across the years it must survive, and available the moment an inspector asks for it rather than locked in a format no one can still open. The plus is where many real findings live, since a record can be perfectly accurate and still fail for being unreadable a decade on.

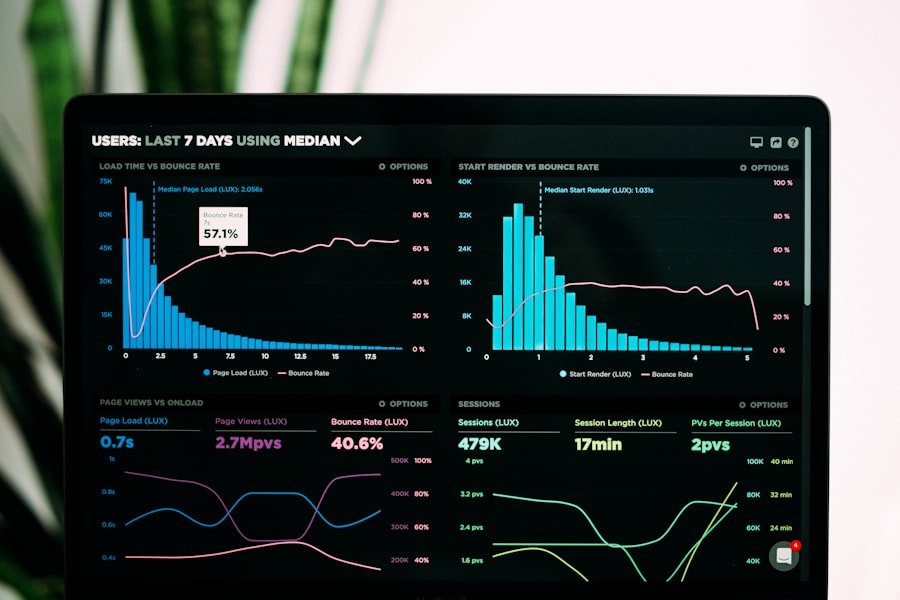

A stability system earns the standard by logging continuously to a secured store, stamping each point with its time, and making a silent overwrite impossible.

The audit trail no one is meant to edit

Behind the chart sits the audit trail, the running log of who did what and when, the thing that turns a number into proof. Every set-point change, every alarm, every login, every export is stamped with a user and a time, and the trail itself cannot be altered without that alteration being logged in turn. An inspector reads it to settle one question, whether the data could have been changed without anyone knowing, and a system where the honest answer is no is one whose results can stand in front of a regulator.

Validated software, not a spreadsheet

The system that reads the probes and draws the chart is itself inspected, and GMP expects validated software rather than a spreadsheet someone wrote one afternoon. It carries user roles, so an operator can read a trace but cannot rewrite it, and even an administrator's reach is logged; validation means the software was tested against what it is meant to do and the testing was written down. An inspector who finds raw readings living in an editable file has found a hole no steady climate can fill.

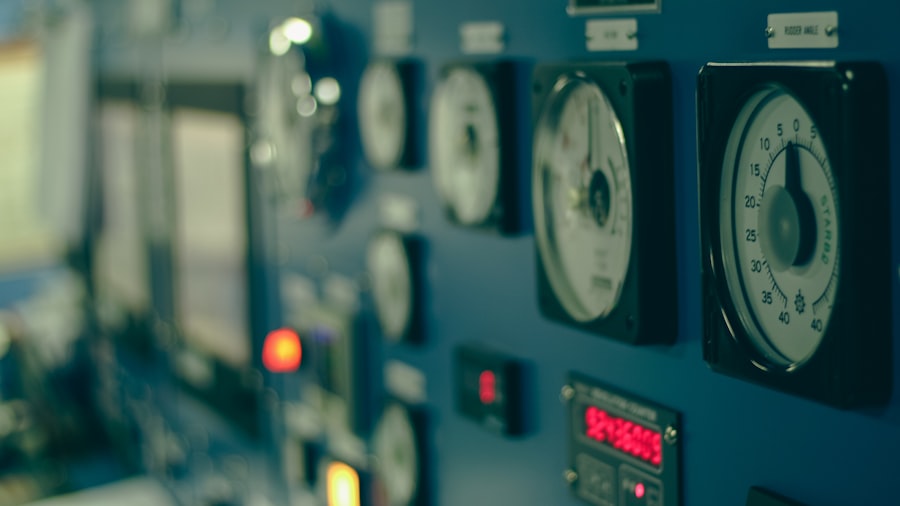

Alarms, and who answers at three in the morning

A chamber that strays and tells no one has failed twice, once at the climate and once at the record. GMP expects alarms that catch an excursion and route it to a person on call, and a written procedure for what that person does, so the response is the same whether the alarm sounds on a Tuesday afternoon or a holiday night. The procedure names the limits, the people, and the steps, and the alarm log is the proof it was followed; an excursion handled by the book is a managed deviation, while the same excursion met with silence is a finding.

Change control

A qualified chamber is a frozen thing, and GMP does not let it change quietly. A new probe, a firmware update, a move to another room, a shift in the load pattern: each has to be assessed, approved, and, where it touches performance, followed by requalification before the chamber is trusted again, since a box validated in one configuration says nothing certain about a box reconfigured into another.

Records that outlive the study

A stability record is not finished when the study ends. The data has to be kept readable and intact for years past the product's shelf life and through the retention period a market demands, which can stretch long after the chamber that made it has been scrapped, so the programme needs backups that are tested, file formats that will still open, and a store that survives a failed disk or a retired system.

A study can pass every check while it runs and still fail an inspection a decade later if the record cannot be produced, since to a regulator data that cannot be retrieved might as well never have been written.

The fix that was never written down

An undocumented fix is, to an auditor, no fix at all.

What an inspector opens first

An inspection of a stability programme is a paper exercise as much as a walk past the equipment. The auditor opens the qualification reports and looks for signatures and dates, opens the calibration records and checks the chain of traceability, opens the audit trail and tries to find out whether a value could have been changed with no footprint, and reads the alarm log against the deviation reports to see that every excursion was caught and handled. The chamber humming in the corner is almost beside the point; what is on trial is the paperwork, and a programme that cannot produce a clean, signed, traceable record loses the argument no matter how steady the box has been.

Where compliance meets the science

A stability study answers a scientific question, whether the product holds up across its shelf life, and GMP lays a second question over it: can the answer be trusted by someone who was not in the room. The chamber's qualification, its calibration chain, its locked audit trail, and its alarm procedures all exist to make that second answer yes, so the first can be relied on.

A perfectly steady chamber with a broken record proves nothing a regulator will accept, while months of disciplined logging turn an ordinary box into proof that outlasts the study itself.
