AEC-Q200 decides whether a passive component is fit for a car. The chamber runs its damp stresses on parts that carry no junction, where a capacitor loses its insulation or a resistor drifts off its value. The failure shows up as a resistance that has changed across the soak, not as a junction gone leaky. A passive is graded to a temperature range of its own, and the box has to hold its heat and its humidity flat while the part sits biased for weeks.
AEC-Q200 is the stress-qualification standard the Automotive Electronics Council wrote for passive components, the capacitors, resistors and inductors that a car uses by the thousand. A passive stores or filters energy without amplifying it. It holds no junction and gives no gain. That difference reshapes the qualification. The ways a passive fails in the damp are its own, so the chamber that proves it reads a different result than it would from a chip or a power device. It reads a resistance and a capacitance where a chip read would show a leakage. It watches a value hold or move across a soak. The grammar of a passive qualification is the grammar of a measurement that drifts, judged against where it began.
A passive component takes energy and stores it or shapes it, with no source of gain. A capacitor holds charge across a dielectric. A resistor turns a voltage into a smaller one and sheds the difference as heat. An inductor stores energy in a magnetic field. The family runs wider than those three, taking in ferrite beads, varistors, thermistors, crystals and resonators, but the capacitors and the resistors are where the damp does its sharpest work. None of them carries a junction. None of them switches or amplifies. A passive does one fixed job. The qualification asks one question of it: does the part still hold its rated value after years of automotive heat and damp. The numbers tell the answer. A capacitor is judged by its capacitance and its insulation resistance, a resistor by its ohms, an inductor by its inductance. The standard sets how far each may move before the part is called failed. Where a semiconductor qualification ends in a working or a leaking device, a passive qualification ends in a value that did or did not stay put.
The hardest damp test a passive faces is the biased humidity soak. It bites a capacitor hardest. The part sits at eighty-five degrees and eighty-five percent relative humidity, held under a direct-current bias, for as long as a thousand hours on the toughest qualifications. A capacitor is two sets of metal plates with a dielectric between them. Its one job is to hold those plates apart electrically, to keep a high resistance between them while it stores charge. That insulation is what the soak attacks. The bias is what sets this test apart from a plain wetting. A capacitor left at rest in the damp ages slowly. A capacitor held at voltage in the damp ages along a path the field opens, so the soak walks it down that path in weeks where service would take years.
Moisture works through the body of the part over the days of the soak and reaches the dielectric and the inner electrodes. Where it arrives, the bias does the rest. The voltage across the plates drives the water and the ions in it to carry a tiny current where none should flow. The insulation resistance, the figure that says the plates are still apart, begins to fall. Worse, the field drives metal itself to move. Silver or other metal from an electrode or a termination migrates through the damp along the field, growing fine conductive dendrites that reach across the gap toward the opposite plate. A dendrite that bridges two plates is a short. A shorted capacitor in the wrong place can take a module down with it. The soak hunts exactly this. It holds the heat and the damp steady so the moisture reaches the dielectric. It holds the bias steady so the field has its full time to pull the metal and lower the insulation. A part read clean and dry before the soak, and read again after, has either held its insulation or lost it. The number tells which. The reads can come at intervals through the run, so a maker watches the insulation slide as the soak goes. The fall shows itself read by read, well before the final check. A part that has begun to go shows it as a resistance trending down, the surface and the field doing their slow work in plain view.
This is why the result reads as a resistance, not as a leakage at a junction. A capacitor has no junction to leak. It has an insulation that either holds the plates apart or fails to, measured as an insulation resistance and a capacitance and a loss angle that the soak may have moved. The chamber’s task is the same one every humidity soak demands, held to the same exacting standard: eighty-five and eighty-five, flat and unbroken, with the bias carried cleanly to every part and no cold surface anywhere condensing a drop onto a biased plate.
A chip is judged by what leaks. A passive is judged by what drifts.

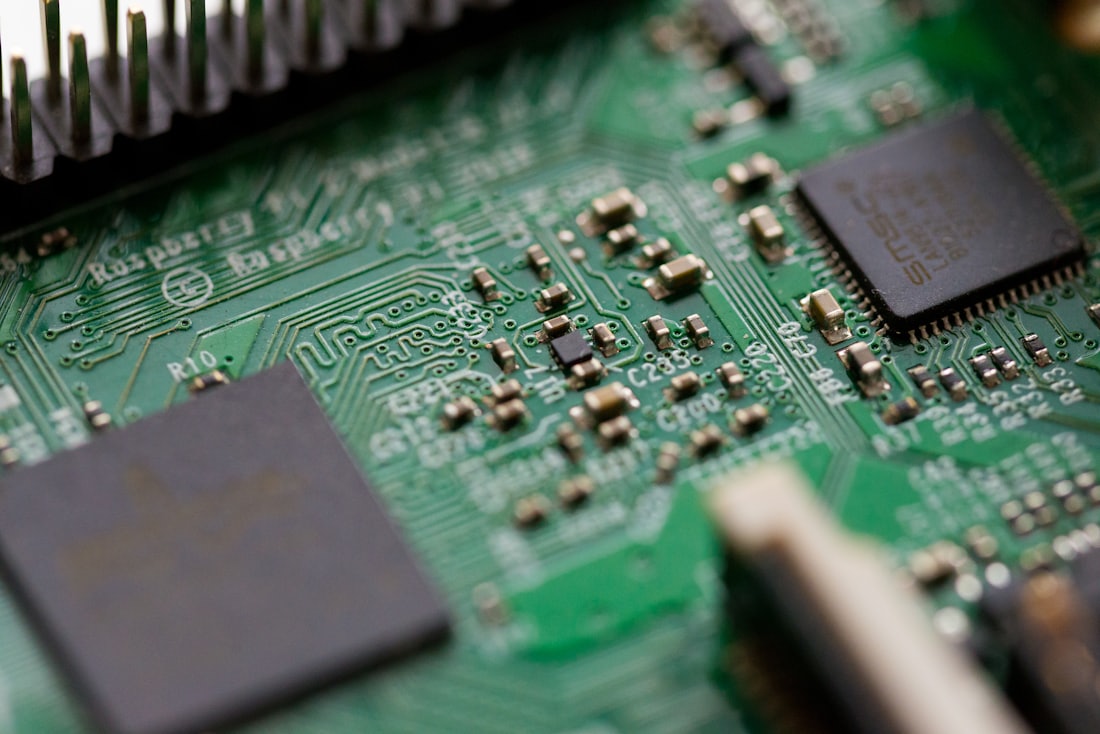

A ceramic capacitor has a weakness no chip shares. Its body is brittle, and the board it solders to flexes. When a circuit board bends, under assembly, under a connector being pushed home, under vibration, the stiff little ceramic part bridging two points on it takes the strain. A flex crack opens in the ceramic, often from a corner near a termination, running inward toward the electrodes. On its own a hairline crack might pass an electrical test. Add the damp. It becomes a road. Moisture that would have taken days to permeate solid ceramic runs straight down the crack to the inner electrodes. The biased-humidity failure that might never have come arrives early and hard. The mechanical bend test that finds the crack belongs to its own part of the standard. What the humidity chamber adds is the consequence: it proves whether a part can keep its insulation when moisture has a crack to travel. It exposes the cracked parts that a dry test would pass. The crack need not be visible. It can hide under a termination or run as a fine line a microscope would struggle to find, passing every dry check while it waits for moisture. That is the danger the chamber answers. By driving the damp into the part under bias, it turns a hidden mechanical flaw into a measurable electrical one, so a part that would have failed a year into service fails on the bench, where it can be caught.
Not every moisture test carries a bias. Moisture resistance runs the part through high humidity at temperature with no voltage applied, often around a hundred and sixty-eight hours at eighty-five degrees and eighty-five percent. It is the blunt instrument of the set. Without a field to drive migration, it finds the failures that damp alone can cause: a termination that corrodes, a seal that lets water in, a resistor film that swells or oxidises and drifts. A resistor shows this plainly. A thin-film resistor holds its value through a film a few atoms thick. Moisture that reaches that film through a flawed coating shifts the resistance, sometimes up, sometimes down, past the tolerance the part is sold to. The unbiased soak catches that drift, where the biased soak is tuned to catch the capacitor’s collapsing insulation. A varistor or a thermistor brings its own concern, a shift in the threshold or the curve that a circuit depends on. The unbiased soak holds the heat and the damp with no field applied, so what it finds is the work of moisture alone, the corrosion and the slow ingress that no voltage hurried along.
A capacitor also faces a dry, hot, biased test, the load test, which the chamber serves as a precise oven. The part holds its rated voltage at a high temperature, commonly a thousand hours at a hundred and twenty-five degrees, and higher for the toughest dielectrics, around a hundred and fifty for a class such as X8R. No humidity runs here. The stress is heat and field together, working on the dielectric over six weeks to age it the way years of hot service would. A dielectric can lose capacitance as it ages, or its insulation can weaken. The load test draws that out. For the chamber the demand is flatness: hold the high temperature steady for the full thousand hours, because an hour that ran cool is an hour of ageing the part never received. The hotter dielectrics feel this test the hardest. A class-two ceramic loses capacitance steadily as it sits hot and biased, a roll-off the maker has to bound. The load test is where that roll-off is measured against the limit. An electrolytic part ages by losing electrolyte, its capacitance falling and its resistance rising as it dries. The chamber gives each one the same flat heat for the same long stretch. The part shows what its dielectric is made of. A part that drifts too far under this dry heat fails as plainly as one that lost its insulation in the damp, since both have left the value a circuit was designed around.
The word capacitor covers several parts that share a job and little else. The damp finds a different weakness in each. A multilayer ceramic capacitor, the workhorse of the car, fails the way the biased soak hunts, through insulation loss and metal migration across its stacked electrodes. An aluminium electrolytic capacitor holds its charge in a liquid electrolyte. Its enemy is heat more than damp. At a high temperature the electrolyte escapes through its seal over time, so the capacitance falls and the part can in the end vent. A tantalum capacitor packs a dense charge in a small body and guards a thin oxide, where a flaw under bias can run away into a short. A film capacitor shrugs off small faults by self-healing. It still drifts in capacitance as moisture reaches its wound dielectric. One chamber serves all of them. It holds the damp that finds the ceramic and the heat that finds the electrolytic, because the standard qualifies the family on one battery and lets each part fail where it is weakest.
A passive carries a grade. The grade is a temperature range. The scheme is the standard’s own. AEC-Q200 recognises a baseline of minus forty to eighty-five degrees. It lets a maker rate a part higher, to a hundred and five, a hundred and twenty-five, or further, by proving it at that ceiling. The grade is not the zero-to-three ladder an integrated circuit carries, nor the junction-temperature rating a power discrete carries. It is a passive’s own span, set by the dielectric or the film or the winding inside. It fixes the temperatures the cycling and the load tests reach. A part rated to a higher ceiling has been soaked and cycled and loaded at that ceiling, so the chamber serving the hotter grades has to reach and hold further while the part sits biased. The dielectric class is the tell for a ceramic capacitor. A part marked C0G holds its value almost flat across temperature, storing little. An X7R stores far more and shifts with heat. An X8R pushes the ceiling to a hundred and fifty degrees for the hottest mounts. The letters encode the span the load and the cycling tests reach. A maker that claims an X8R has soaked and loaded it at a hundred and fifty, where an X7R part stops at a hundred and twenty-five.
The damp is half the story. The swing between cold and hot is the other half. A passive lives through thousands of warm-ups and cool-downs in a car. The standard cycles it between its grade extremes to work the mismatch between the part, its terminations, and the solder that holds it to the board. A ceramic capacitor feels this sharply. The ceramic, the metal terminations, and the solder joint all expand by different amounts, and the strain concentrates where the part meets the board. Over the cycles a termination can fatigue or a solder joint can crack. A crack in the joint is another road for moisture later. The cycling method owns the detail of how thermal fatigue accumulates. The point for a passive is that its body is brittle and its joints are small, so the swings find the weak ones. A larger ceramic part takes the strain hardest, because its body spans more of the board and the strain at its ends grows with its length. The terminations carry the load. A termination that is poorly bonded, or a solder joint that is starved, lifts or cracks first. The standard fixes the number of cycles and the span so the test reaches the fatigue life a car would. The chamber has to deliver every one of those cycles to the full span, since a swing cut short is a cycle the joint never felt.
A passive qualification runs on numbers, and on many parts at once. The devices are mounted on boards, the capacitors biased through fixtures that carry the test voltage, the resistors and inductors held for measurement. During the soak the parts are read at intervals. The reading is a value, never a function: a capacitance, an insulation resistance, a loss angle for a capacitor, an ohms reading for a resistor, an inductance and a quality factor for a coil. A passive that has begun to fail shows it as one of those numbers wandering out of tolerance. The fixture has to carry the bias cleanly and survive the damp, the same as any humidity chamber. Because passives qualify in large samples the boards are dense, which makes the chamber’s uniformity matter as much here as anywhere. A part in a cool corner sees a milder soak. Its number lies about the lot. A passive qualification can fill a chamber with hundreds of parts on dense boards, far more than a chip lot would. That density makes uniformity the deciding discipline of the work. Air has to reach every part on every board at the same temperature and the same humidity, or the parts in the shadow of a neighbour log a softer test than the parts in the open. A run is only as honest as its worst-served corner.
A passive is qualified as a campaign, never on a single lucky part. AEC-Q200 draws parts from more than one production lot, so a flaw in the process has more than one batch in which to show. It sets a sample size and looks for zero failures across the stress tests. A single part that drifts past its limit on a post-soak read can send the lot back. The governance is the backbone of the result. It is the reason the chamber cannot be the weak link. A soak that wandered or a bias that dropped could fail a sound part, or pass a marginal one, and either way sink a qualification the parts themselves would have settled honestly. The campaign is long, the thousand-hour soaks alone filling six weeks each, so a passive can hold a chamber for months while its numbers are watched. The qualification is not a one-time pass either. A change to the dielectric formula, a new electrode metal, a move to a different plant can each send the part back through the soaks, since any of them can change how the part holds moisture or heat. The standard treats the process as the thing being proven, the part included.
Reading a passive is a matter of limits on a measurement. The standard sets how far each number may move and still pass: how much the capacitance may shift, how far the insulation resistance may fall, how much a resistor may drift, how much the loss angle may grow. A part read before and after a stress, with its numbers inside those limits, has passed. A part whose insulation resistance fell by an order of magnitude has failed, even if it still works in a loose sense, because the fall is the moisture and the field at work and the next stress would finish it. The chamber’s contribution to that reading is the trust behind the numbers. A capacitance that held under a clean, flat soak means the part. A number read after a soak that sagged or condensed means nothing, because a drift in the part can no longer be told from a fault in the box. The limits are not loose. A capacitor might be allowed a small percentage of capacitance change and a floor under its insulation resistance. A resistor might be allowed a fraction of a percent of drift. A part that crosses either line fails whatever it still seems to do. The reads taken at the start give the baseline each part is measured against, so a part is judged against its own beginning, which catches a slow drift that an absolute reading would miss.
A car holds thousands of passives, nearly all of them costing a fraction of a cent. The temptation is to treat them as trivial. The standard refuses to. A single ceramic capacitor that shorts on a power rail, a single resistor that drifts in a sensor divider, a single bead that cracks open in a filter, can disable a safety function as surely as a failed processor. Multiply one part in a million by the thousands of passives in a car and the millions of cars on a road. A rare failure becomes a certainty somewhere. That arithmetic is why a one-cent part gets the same weeks of damp, heat and cycling that a far costlier chip does. The chamber spends its time without regard to what the part costs, because the cost of the failure does not scale with the price of the part. There is a second reason. A passive sits in the signal and the power paths of every system in the car, humble and load-bearing. A drifted divider feeds a sensor a wrong reading. A failed filter lets noise through to a controller. A shorted decoupling capacitor pulls down a rail. The part is cheap. The position is not. AEC-Q200 prices the testing to the position.
What AEC-Q200 asks of a chamber is honesty toward a part with no junction to hide behind. It has to hold eighty-five and eighty-five flat for a thousand hours while a capacitor sits biased, with no surface falling to the dew point. It has to hold a high temperature steady while a part sits loaded and dry. It has to swing between the grade extremes hundreds of times without losing its set points at the turns. A chamber that does all of that lets a maker stamp a grade on a passive and stand behind it across the life of a car. The grade is a promise about the heat and the damp the part can take. The chamber is what makes the promise honest, one flat soak and one clean swing at a time.
A passive fails by a changed value where a chip fails by a leaking junction. A capacitor loses insulation resistance as moisture and a DC bias drive a tiny current between its plates and grow metal dendrites that can bridge them. A resistor drifts off its ohms value as moisture reaches its film or corrodes a termination. The reads are numbers: capacitance, insulation resistance, ohms. The soak is judged by how far they moved.
The core condition is 85 C and 85 percent relative humidity. Moisture resistance runs around 168 hours with no bias. Biased humidity adds a DC bias and runs far longer, up to 1000 hours on the toughest qualifications, because the bias is what drives the migration and insulation loss in a capacitor. A separate load test holds a capacitor at 125 C, near 150 C for an X8R dielectric, under bias and dry.
A ceramic capacitor is brittle, so a flexing board can crack it, usually from a corner near a termination. A hairline crack passes a dry electrical test and still gives moisture a direct road to the inner electrodes. In the humidity chamber a cracked part fails its insulation far sooner than a sound one, which is how the damp exposes the parts a board bend has already weakened.
Both name temperature ranges. The schemes are separate. AEC-Q200 recognises a baseline of minus 40 to 85 C and lets a maker rate a passive higher, to 105, 125 C or beyond, by proving it there. That is not the zero-to-three ambient ladder an integrated circuit carries under AEC-Q100, nor the junction-temperature rating a discrete carries under AEC-Q101. A passive is graded to the span its dielectric, film or winding can hold.
Because the cost of a failure has nothing to do with the price of the part. A single shorted capacitor or drifted resistor can disable a safety function. A car carries thousands of passives and a road carries millions of cars, so a rare defect becomes a certainty somewhere. AEC-Q200 spends the same weeks of damp, heat and cycling on a one-cent passive that a costlier device receives.
