Humidifier Scaling Prevention In Environmental Test Chambers

How scale forms

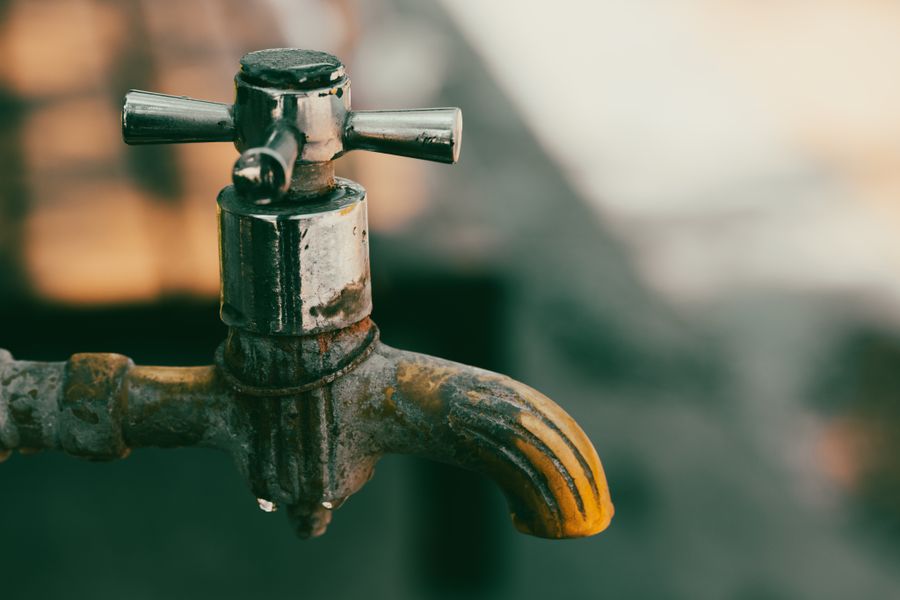

Scale is the mineral that water leaves behind when it evaporates. Hard water carries dissolved calcium and magnesium bound up with bicarbonate, and when that water boils or atomises, the pure vapour leaves while the calcium and magnesium stay. The bicarbonate breaks down under heat into carbonate, and the calcium carbonate that forms is barely soluble, so it drops out of the water as a hard white crust on whatever surface is hottest.

Calcium carbonate is the unusual salt that grows less soluble as the water warms, settling first and thickest on the heater itself, the very surface that needs to stay clean to pass its heat into the water. A film a millimetre thick already insulates that heater enough to drive its surface hotter, which lays down scale faster still, a loop that ends with a cracked element or a tripped thermal cutout.

The concentration effect

A humidifier does something a kettle never does: it runs for weeks without being emptied. Every litre that leaves as vapour is pure, and the minerals it leaves behind stay dissolved in the water that remains, so the concentration of hardness in the pan climbs steadily the longer the unit runs. Feed it water at two hundred milligrams of hardness per litre and boil off nine tenths of the volume before any fresh water dilutes it, and the pan now holds two thousand milligrams per litre, ten times the feed.

Scale forms once the concentration passes what the water can hold, so a humidifier left to concentrate its own water will scale even on supply that looked moderate at the tap. The whole craft of prevention is keeping that concentration from ever reaching the point where the carbonate falls out.

The water leaves as vapour; the rock stays in the pan.

Start with the water

The best scale is the kind that never arrives.

The cheapest scale to deal with is the scale that never arrives. Deionised or reverse-osmosis water carries almost no calcium or magnesium, so a humidifier fed on it concentrates nothing and grows no carbonate crust, and the supply specification matters as much to scaling as it does to dust. Many chamber humidifiers ask for softened or demineralised water for exactly this reason. The exception is the electrode-cylinder boiler, which needs some conductivity to work and accepts a measure of scale by design, a case set apart later. For every other type, clean feed water removes the problem at its root rather than fighting it downstream.

Reading the risk before it forms

Whether a given supply will scale can be read from a water report rather than waited for. Hardness is the headline number, written as milligrams of calcium carbonate per litre or as grains per gallon, where one grain is about seventeen milligrams per litre; soft water sits below sixty milligrams, hard water runs past a hundred and twenty, and very hard supplies climb beyond two hundred and fifty. Hardness alone does not settle it, though, because scale also depends on the alkalinity, the temperature, and the pH together.

The Langelier Saturation Index folds those four into a single figure: a positive index says the water is primed to deposit carbonate, a negative one says it will tend to dissolve it instead. A supply with a strongly positive index will scale a humidifier quickly whatever its raw hardness reads, and a lab that pulls these numbers from the water utility once can predict the maintenance interval before the first crust appears.

Bleed and blowdown

The standing answer to concentration is to throw some water away before it gets too rich. As a humidifier boils, the minerals it leaves behind build up in the water that remains, and once that water passes the point where the salts can no longer stay dissolved they crash out as scale, so the cure is to drain off a share of the concentrated water on a schedule and let fresh, dilute water take its place. The trade calls this bleed or blowdown, and the amount is set by how hard the supply is: a unit on moderately hard water might shed a small fraction of its throughput to hold the dissolved solids below the scaling point, while a unit on genuinely hard water might bleed a fifth or more of everything it takes in, pouring real volumes of warm water to drain to keep the boiler clean. There is a cost to it, in water, in the energy already spent heating what is thrown away, and in the drain the install needs, so the rate is tuned to the water rather than set high for safety. Done right it never lets the concentration reach the edge, and the boiler runs for years with only light cleaning; done too sparingly it saves a little water and pays it back in a cylinder choked with scale long before its time.

The disposable-cylinder bargain

One design stops fighting scale and budgets for it instead. The electrode steam humidifier boils water inside a sealed plastic cylinder by passing current between electrodes through the water, and scale builds on those electrodes as it runs. Instead of descaling the cylinder, the design treats it as a consumable: when the scale has finally bridged or insulated the electrodes, the whole cylinder is unplugged and swapped for a fresh one in minutes.

The water for this boiler is deliberately left conductive, since pure water carries no current and the boiler would sit cold, so it accepts a service life measured in running hours and replaces the part on a schedule. Prevention here means tracking that schedule and feeding the right water, not keeping any single cylinder clean forever.

Surfaces that scale slowly

How a humidifier is built decides how fast it fouls. A heater packed with too much power into too little surface runs its skin scorching hot, and since carbonate falls out fastest on the hottest metal, a high watt-density element scales far quicker than a gentle one spreading the same heat over a larger area. Good chamber humidifiers run heaters at a modest watt density for this reason, trading a little size for a far longer interval between cleanings.

The pan and boiler surfaces are kept smooth too, in polished stainless rather than rough cast metal, because scale grips a rough surface and shrugs off a slick one, coming away with a wipe where it would otherwise need an acid soak. A sloped floor and a generous drain let the unit empty itself completely between runs rather than leaving a mineral-rich puddle to dry into a seed crust for the next cycle. None of this shows on a humidity readout, and it separates a humidifier that runs a season between services from one that needs attention every few weeks.

Descaling when prevention slips

Scale arrives in the end on any unit fed less than perfect water, and lifting it is a matter of chemistry. Carbonate scale dissolves in a mild acid, and the trade reaches first for citric, sulfamic, or phosphoric acid, warmed and circulated through the boiler for an hour or two until the crust fizzes loose. The acids are chosen to be gentle on stainless steel while aggressive on lime, and a careful descale leaves the metal bright and the passages clear.

Silica scale is the stubborn exception: it is glassy rather than chalky, the carbonate acids slide off it, and a silica-fouled surface often has to be scoured by hand or soaked far longer in something far harsher. The lesson points back upstream, since the silica that ordinary descaling cannot shift is the silica a good deioniser should have caught before it ever reached the boiler. Frequency tells its own story, in that a unit needing acid every month is being run on water too hard for it, and the fix lives in the supply rather than the descale bucket.

The nozzle and the transducer

Atomising humidifiers scale in their own way. An ultrasonic head or a spray nozzle flings the dissolved minerals into the air as a fine dust and also lets them cake on the vibrating face or the orifice itself, narrowing the spray until the output falls off. A clogged nozzle starves the chamber of moisture and a fouled transducer simply stops atomising, and both come back only with cleaning or replacement. These designs reward the cleanest water of all, since they offer no bleed to dilute the load and no large heater to absorb it.

The early warnings

Scale rarely fails a humidifier overnight, and a watchful operator catches it long before it stops. The first sign is usually a slow loss of output: the chamber takes longer to climb to its humidity set point, or sags below it during a demanding run, as the insulating crust steals heat the boiler used to deliver. A steam unit may begin to surge or spit as scale traps pockets that flash to vapour unevenly.

A rising conductivity trend in the boiler, or a bleed valve that drains more often than it did, says the feed water has hardened or the unit is concentrating faster than before. Reading these signs and acting on them turns a scheduled descale into a quiet routine rather than an emergency mid-test.

A maintenance rhythm to keep

Prevention settles into a short habit. Check the feed water quality on the schedule the maker sets, confirm the bleed or drain is cycling, glance at the boiler conductivity if the unit reports it, and log that reading so a slow climb shows against the months behind it; then descale or swap the cylinder before the output starts to sag rather than after. A drained, dried humidifier between long idle spells grows no crust while it waits. The rhythm costs minutes and spares the chamber the days a seized boiler takes to put right.

Pulling it together

Scaling prevention in a chamber humidifier comes down to never letting the minerals concentrate to the point where they fall out. Feed the unit the softest water it allows, bleed the boiler before the dissolved solids climb too high, run the heaters cool and the surfaces smooth so what scale forms lets go easily, and read the early warnings so a descale stays a routine. The electrode cylinder takes the opposite path and budgets for the scale it cannot avoid. Match the strategy to the humidifier in the box, and the chamber holds its humidity for years instead of fighting its own water plant every few weeks.
