Environmental Classification For Chamber Selection Per IEC 60721

A language for environments

IEC 60721 is a classification system, a shared vocabulary for the conditions a product faces over its life. Rather than each maker describing a climate in its own words, the standard gives a set of classes, each one a defined range of temperature, humidity, and the other stresses, so a specification can name a class and everyone reads the same thing. It turns a vague phrase like outdoor industrial use into a precise set of numbers.

A class is a promise about the environment.

When a spec calls out a class, it fixes the worst the product should meet: the high and low temperature, the humidity range, whether condensation forms, how much dust blows, how hard it gets shaken. The designer builds to that envelope, and the test proves the product holds inside it.

A class is a promise

Name a class and you fix the worst the product should meet, in numbers everyone reads the same way.

Every leg counts

Storage, transport, and use each have their own class. The product is built to the union of all of them.

The shape of the code

The classes carry short codes that pack a lot into a few characters.

A leading number marks the stage of life, from storage and transport to use fixed in one place. A letter marks the kind of stress: K for climatic, B for biological, C for chemically active substances, S for the mechanically active substances like dust and sand, and M for the mechanical world of shock and vibration. A severity number closes the code. Read together, a single class spells out the temperature, the humidity, or the dust a product will meet at that stage of its life.

From life stage to condition

A product lives several lives, and IEC 60721 classes each one.

In storage it sits still in a warehouse, facing one band of temperature and humidity. In transport it bounces across the world, meeting shock, vibration, and a wider climate swing. In use it settles into its working spot, sheltered indoors or exposed outdoors, with its own steady and extreme conditions. The standard gives separate classes for each stage, because the worst a product faces in a shipping container differs from the worst it faces bolted to a wall.

Mapping the life is the first job. A designer walks the product from the factory through the truck, the ship, the warehouse, and the field, picks the class that fits each leg, and gathers the worst of all of them into the envelope the product has to survive.

One product, many classes

A real product rarely fits one class. It is stored in a warehouse, trucked across a continent, shipped over an ocean, and installed in a field, and each leg has its own class with its own worst case. The designer collects them all and builds to the union: the deepest cold from one leg, the highest heat from another, the heaviest vibration from the road, the salt from the sea crossing. The chamber programme then has to cover that combined envelope. A single product can keep several chambers and rigs busy before it ships.

Storage and transport, the legs easy to miss

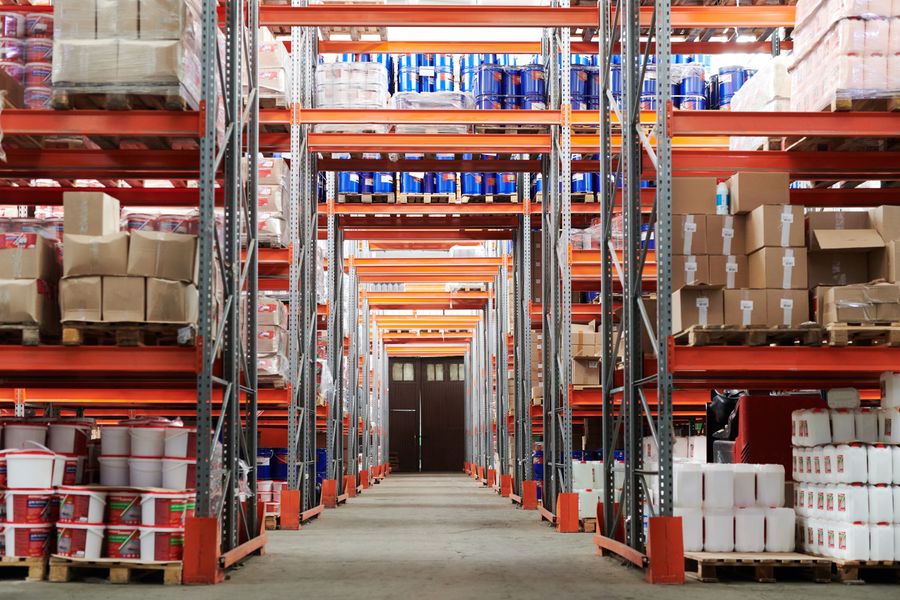

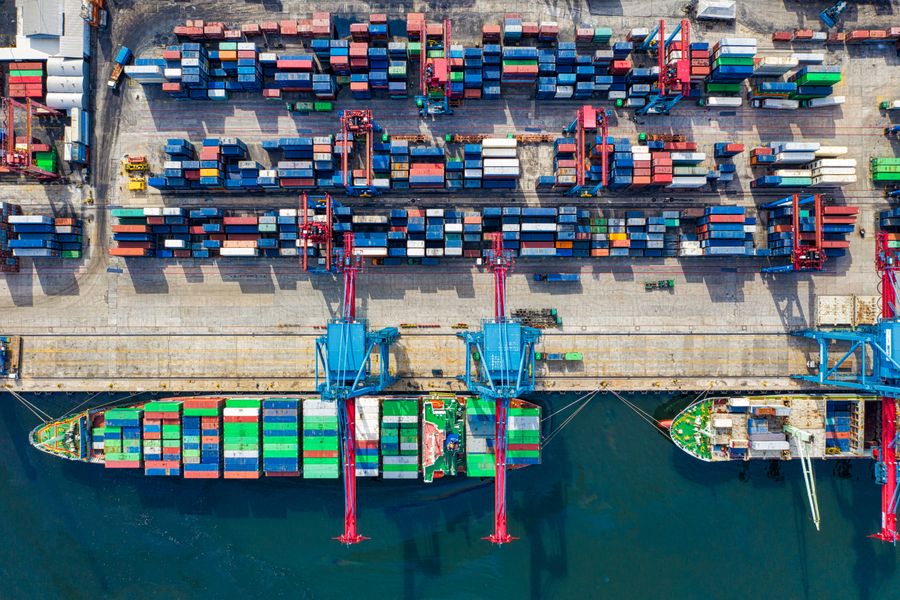

A product spends long stretches with no one watching it, and those are the legs a classification has to pin down most carefully. Between the factory and the user a part may sit months in a warehouse and travel weeks by road, sea, and air, and for most of that time it is powered off, packed in a box, and exposed to whatever the building or the container holds. Storage sounds gentle but is not: an unheated warehouse swings from freezing nights to baking afternoons, a shipping container crossing the tropics can hold heat and damp far beyond anything the product meets in use, and a long sea leg adds salt air and condensation as the steel sweats with each day-night cycle. Transport piles shock and vibration on top of the climate. IEC 60721 gives these legs their own classes precisely because they are easy to forget and often harsher than the working life everyone designs for, so a part qualified only for its comfortable powered duty can still arrive already damaged. Mapping storage and transport is where a careful specification earns its keep, naming the temperature, the humidity, and the duration each leg imposes, and handing the test lab a chamber programme that copies the warehouse and the container rather than only the bench the product will eventually sit on.

Reading the numbers out of a class

Each class resolves into a table of values. A climatic class names a low temperature and a high one, a humidity range, whether condensation or rain or solar load appears, and how fast the conditions can change. A class for mechanically active substances names the dust concentration and the sand. A mechanical class names the vibration and the shock. The designer pulls those numbers and now holds the exact conditions to design and test against.

The severity within a class

A class type carries a ladder of severities, so a designer chooses both the kind of stress and how much of it. A mild climatic severity might span a narrow band around room temperature; a harsh one reaches deep cold and high heat with full humidity. The severity number in the code is where that choice lives, and it is the dial that moves the chamber's required range up or down.

Reading the severity wrong sends the whole selection astray.

Reading one class end to end

Take a product fixed in place at a sheltered indoor spot.

Its climatic class names a modest temperature band, a moderate humidity, and little chance of condensation, since the room stays conditioned. Now take the same product mounted outdoors in the open. Its class jumps to a wider temperature swing, near-saturation humidity, condensation on cold mornings, rain, and a solar heat load on sunny afternoons. Same product, two lives, two classes, and two very different chambers behind the tests that prove each.

From class to test

A class says what the environment is; a test method says how to reproduce it. IEC 60721 hands its numbers to the test standards, and the temperature, humidity, and other ranges in a class map onto the methods that produce them, the cold and dry-heat tests, the damp-heat soaks, the dust and sand exposures. The class sets the target, and the method and its severity get chosen to hit it.

Classification and testing are two halves of one job.

One standard describes the world, the other recreates it in a box. A class with no test behind it is a description no one has checked, and a test with no class behind it is a number with no reason for it, so the two work together from the start of a programme.

From condition to chamber

Once the conditions are in hand, the chamber follows. The lowest temperature in the class sets how deep the refrigeration has to reach. The high temperature and the humidity together set the heating and the humidity system. Dust or sand in the class points to a particle chamber; vibration points to a shaker. A class that spans a wide range, hot and cold and damp, calls for a combined chamber that does it all, while a narrow one suits a simpler box. The class, in effect, writes the chamber's specification.

Headroom matters in the choice. A chamber picked to just reach the class limit has nothing in reserve, so a careful selection leaves margin above the high temperature and below the low one, and room in the humidity, so the box holds the condition steadily rather than straining at its edge.

From envelope to a single test plan

The end of the classification work is a test plan the chamber can run.

The collected classes become a list of conditions, each with a severity and a duration, ordered into a sequence the lab can carry out. A combined chamber runs the climatic legs back to back, a particle chamber takes the dust class, a shaker takes the mechanical one, and the plan ties every test to the class it proves. What began as a description of the world ends as a schedule of runs and the boxes that perform them.

Matching the test to the world

It is tempting to test every product to the harshest class and be done, and the cost says otherwise. A chamber and a test plan built for a polar, desert, and tropical world all at once is far dearer to buy and run than one matched to the product's real life. IEC 60721 lets a maker test to the true envelope, neither under-building and missing a stress the field will bring nor over-building and paying for conditions the product will never see.

The cost of guessing the class wrong

Picking the wrong class costs either way, and the two errors fail in opposite directions. Class it too mild, and the chamber lacks the range to prove the product against the world it will meet, so the test passes a part that a hot summer or a cold store later breaks, and the field failure arrives as a surprise the lab never had a chance to catch. Class it too harsh, and the maker pays twice: once for a bigger, costlier chamber and a longer test than the product needs, and again in good parts scrapped for a condition they will never face, which quietly lifts the price of every unit shipped. The classification is where that balance gets struck, long before a single setpoint is dialled in, and a wrong call there cannot be undone by careful work later in the lab. It is the cheapest decision to get right and one of the dearest to get wrong.

The other stresses, beyond temperature

Climate is only part of what IEC 60721 covers. The biological classes account for mould, fungus, and the creatures that gnaw or nest. The chemical classes name the salt, the sulphur, and the industrial gases that corrode. The mechanically active substance classes cover the dust and sand. The mechanical classes cover the shaking and the knocks of transport and service. A full reading of a product's classes can send it to several chambers and rigs rather than the climate box alone, so the selection spans the whole test lab.

Where the classes come from

The numbers in a class are not invented. IEC 60721 draws on measured data about the conditions that appear in nature and in service, the records of temperature, humidity, rainfall, dust, and shock gathered from the places products go. That grounding is what lets a class stand in for the world, so a chamber set to a class reproduces conditions a product will genuinely meet rather than an arbitrary worst case someone guessed at.

When the sources disagree

A product can carry classes from more than one source.

A customer names an IEC 60721 class, an industry standard names its own environment, and a regional rule adds a third. The selection reads them together and builds the chamber to the union of all of them, since meeting one and missing another still fails the product in the field the missed one describes. Reconciling the sources early keeps a programme from discovering a gap after the chamber is bought.

Keeping the class current

Environments and standards both move, so a class is read against the current edition. IEC 60721 is revised as the world and the data change, and a product requalified years later may map to an updated class with shifted numbers. A lab checks the edition a programme cites and reads the class from it, since a value pulled from an old table can send the chamber to the wrong setpoint.

The class on the test report

A finished qualification ties the result back to the class it was meant to prove.

The report names the class, lists the severities tested, and shows the chamber held them, so a reader can trust the product met the named environment rather than some softer stand-in. A class cited with no matching test, or a test run with no class behind it, leaves a gap an auditor will find, so the two stay joined from the plan through to the report.

From a code to a chamber

The power of IEC 60721 is that a short code carries a full environment. A leading number marks the stage of life, from storage and transport to use fixed in place; a letter marks the kind of stress, K for climatic, B for biological, C for chemically active substances, S for the dust and sand of mechanically active substances, and M for shock and vibration; and a severity number closes it. Read that code and a table opens behind it: a low temperature and a high one, a humidity range, whether condensation or rain or solar load appears, and how fast the conditions can change. The class turns a vague phrase like outdoor industrial use into a precise set of numbers a designer can build and test against.

From those numbers the chamber falls out almost by itself.

The lowest temperature in the class sets how deep the refrigeration has to reach; the high temperature and the humidity together set the heating and the humidity system; dust or sand points to a particle chamber, vibration to a shaker. A class that spans a wide range, hot and cold and damp, calls for a combined chamber that does it all, while a narrow one suits a simpler box, and a sensible selection leaves headroom above the high limit and below the low one so the box holds the condition rather than straining at its edge. Read the class, gather the worst across the product's whole life, and the chamber's specification is written.

Pulling it together

IEC 60721 is the map that comes before the test.

It sorts the temperatures, humidities, dusts, chemicals, and shocks of the real world into classes, names the worst a product will meet at each stage of its life, and hands those numbers to the methods and the chambers that reproduce them. Read the class, gather the worst across the product's life, and the chamber's specification falls out of it, deep enough in cold, high enough in heat and humidity, ready for the dust or the shaking the class names. Chosen that way, the chamber tests the product against the world it will live in, with margin to spare and nothing wasted.
