6 m³ Rapid Thermal Cycling Chamber For Power Semiconductor Modules

Big and fast at once

Large volume, fast change, one box.

What this chamber is for

This is a large rapid temperature-change chamber, a box of around six cubic metres built to swing its inside between a deep cold and a high heat quickly, and built at a size that holds power semiconductor modules by the rack rather than the handful. It is the meeting of two hard demands, volume and speed, in one machine.

Its purpose is the testing of power modules, the bulky switching blocks of inverters and drives, which are too large and too many to prove in a small cabinet. A chamber this size lets a lab cycle a real load of them at once, to the fast ramp their qualification asks for.

Why power modules want a big chamber

Power semiconductor modules are not small parts. Each is a heavy, dense block, and a test that means anything runs many of them together, often mounted on fixtures or busbars that take room of their own.

Why such modules must be cycled at all is a matter their reliability story sets out; the point here is only that proving them takes space. A cabinet that holds a tray of chips cannot hold a rack of power modules and their fixtures, so the chamber grows to fit the work.

Often the modules are not merely sitting but wired, powered or watched through the wall of the chamber while they cycle, which asks for more room again and for ports the load can reach through, pushing the box larger still.

Volume fights speed

The larger the chamber is, the harder it is to swing it fast.

Moving a large air mass fast

A rapid temperature change is hard to make in any chamber, and it grows harder with every cubic metre of room, which is the engineering truth a six-cubic-metre rapid chamber is built around. To swing a temperature fast is to move a great deal of heat in a short time, and the amount of heat that must move scales with the size of the box: a small cabinet holds little air and chills or warms it quickly with a modest plant, while a room of six cubic metres holds a large mass of air that resists changing, so the same fast ramp now demands a plant many times larger. The cooling side carries the heaviest of this burden. To pull a big volume down quickly, and to keep pulling as the heaters of the next half-cycle fight back, the refrigeration must be sized in serious capacity, often staged or cascaded so one circuit hands its heat to another and the low extreme can be reached without the system stalling. The heating side answers in kind, banks of elements able to pour kilowatts into the space so the rise is as steep as the fall. Between them the air must be driven hard, large blowers and shaped ducting forcing the whole volume past the load fast enough that no corner lags the rest, because a rapid rate means little if one shelf changes while another waits. And over all of it sits the thing the rate is set against: the load. A chamber full of power semiconductor modules is a chamber full of heavy copper and ceramic, a thermal mass that soaks heat slowly and gives it up slowly, so the machine must overpower not just its own air but the metal sitting in it, dragging the parts along the ramp the specification asked for. The rated rate of such a chamber is a promise dearly bought, paid for in compressor capacity, heater banks, and the brute airflow that ties them to the load, and the whole machine is best understood as raw capacity marshalled into a smooth, fast, even swing.

The load drags its feet

The heavy load's own mass lags behind the moving air.

Empty rate, loaded rate

A chamber's rated ramp is a number that deserves a hard question: at what load was it measured. A rate quoted for an empty box, or one holding a token sample, is the easiest number to reach and the least like real use.

Put a full rack of heavy power modules inside and the achieved rate falls, because the plant must now drag all that metal along the ramp, not just the air. The honest figure is the rate the chamber holds with the load it will carry, not the rate it shows empty.

So a buyer reads past the headline number to the loaded rate, the temperature change the chamber can deliver at the part with its modules and fixtures inside, since that is the rate the test will see in use.

Air or product, which rate?

Whether the rated rate is read at the moving air or at the product changes everything.

The plant behind the box

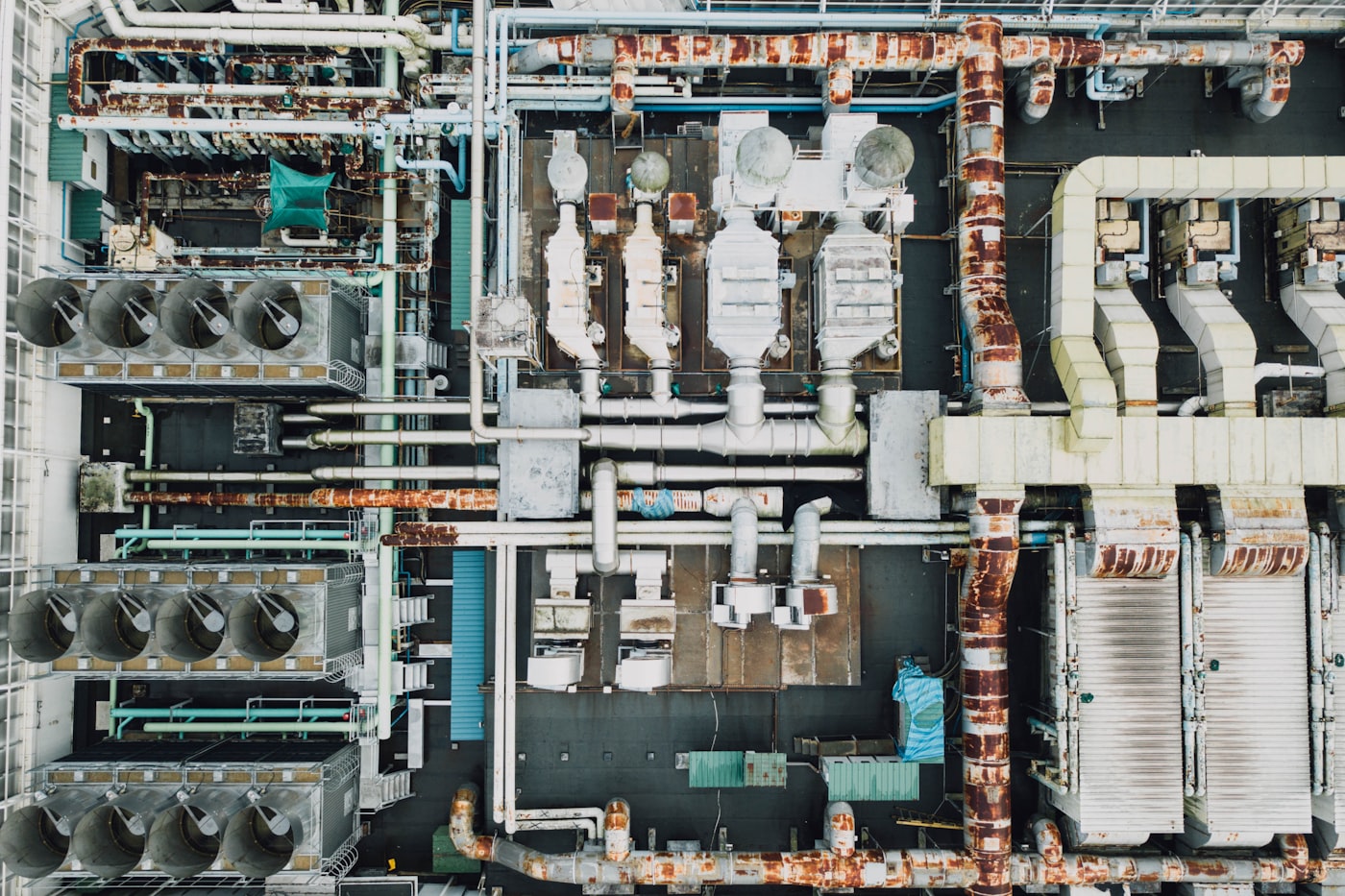

The chamber is only the visible part of a larger machine. Behind it or beneath it sits a plant often as large as the box itself, the compressors, the condensers, and the heat exchangers that do the real moving of heat, so what a buyer makes floor for is not one cabinet but a small machine room attached to it.

A controller is the brain of the whole. A programmable unit drives the ramp, holds the dwell at each end, counts the cycles, and watches the sensor on the product, commanding the capacity beneath it to follow a profile a screen lays out, so an operator sets a recipe and lets the machine run rather than nursing dials through the night.

The electrical service is heavy in kind. A plant that swings so much heat so fast draws a large three-phase supply, and the inrush of compressors and heater banks coming on together has to be staged and managed so the swing does not trouble the room and the building it sits in.

With so much always running, the machine is built to be serviced. A chamber meant to cycle for weeks on end carries access to the parts that wear, the seals, the fans, the compressor valves, and the larger systems may double a circuit so a single fault need not halt a long qualification midway.

Frost is the hidden tax

A chamber that swings often to a deep cold fights an enemy the warm side never meets: frost. Whatever moisture rides in the air freezes onto the cold coils and the load, and over a long run that ice builds, robbing the refrigeration of its bite and slowing the rate the chamber was bought for.

So a large rapid chamber works to keep water out. It is run with dry air or purged toward a low dewpoint, and its loading is done briskly so little damp comes in with the modules, because every gram of moisture is ice waiting to happen on a coil.

When frost does gather the cure costs time. A defrost warms the coil to clear it, and the minutes spent doing so are minutes not cycling, so a chamber that manages its moisture well keeps more of its day for the work and holds its rate run after run.

Fast across six cubic metres

A fast swing across six cubic metres is a feat of power.

Loading the big box

A chamber this size is loaded like a small room. Modules go onto shelves or racks, fixtures and busbars with them, and a wide door lets a loaded trolley roll in rather than be packed by hand.

Ports through the wall carry the cables that power and watch the modules, sealed feedthroughs that let a test run the parts live inside the cold and heat. Power, gate-drive, and sense lines all pass through them, so the wall is pierced for the test as much as it is sealed against the cold and heat the chamber makes.

What the chamber must hold

For the chamber, the job is to hold a rapid rate across a large space and a heavy load at once. It must reach the rated swing not just at the sensor but through the whole volume, so a rack-full of modules meets the same ramp.

It must keep the change even from corner to corner, the air driven so no shelf lags another, because a large box left to drift would cycle its near side harder than its far.

It must reach both extremes and hold the ramp between them with the load aboard, overpowering the metal's own slowness rather than the air alone.

It must bear the weight of a loaded rack on its floor and its shelving, since a chamber for power modules carries far more mass than one for light parts, and its structure and the airflow around a heavy load must both be planned for.

And it must do all of this cycle after cycle without drift, and report the rate it holds with the load it carried rather than the rate it shows when empty.

Capacity is the price of speed

Capacity is what a large rapid chamber sells, and capacity is what it costs.

Where the size sits

Among temperature-cycling chambers this is the big-and-fast corner. A small cabinet can swing quickly on a modest plant; a large one can hold a rack but usually swings slowly; a six-cubic-metre rapid chamber refuses the trade and asks for both at once.

That is what sets it apart and what makes it costly: it will not give up speed to gain size, so it carries the plant of a fast small chamber scaled up to a room, and earns its place where large power modules must be cycled fast and in numbers.

Throughput, not just rate

The reason to pay for a big fast chamber is rarely a single module; it is many at once. A small cabinet may swing faster on paper, but it proves a handful per run, while a six-cubic-metre chamber cycles a whole rack together, so its output is the rate multiplied by the load it carries.

Read that way, throughput rather than rate alone is the measure that counts. A large chamber that holds a strong loaded rate across a full rack qualifies more modules in a week than a small quick one ever could, which is the economy that justifies its size and its plant.

Big, fast, and proven

A six-cubic-metre rapid chamber is brute capacity made to behave, a large volume swung fast and evenly so a rack of power modules meets the same hard ramp at every position. Its value is measured not by the rate on its plate but by the rate it holds with the load inside.

A module cycled in such a chamber has met the fast swing its service will bring, proven not one at a time in a small box but by the rackful, in a room built to move heat at scale.
